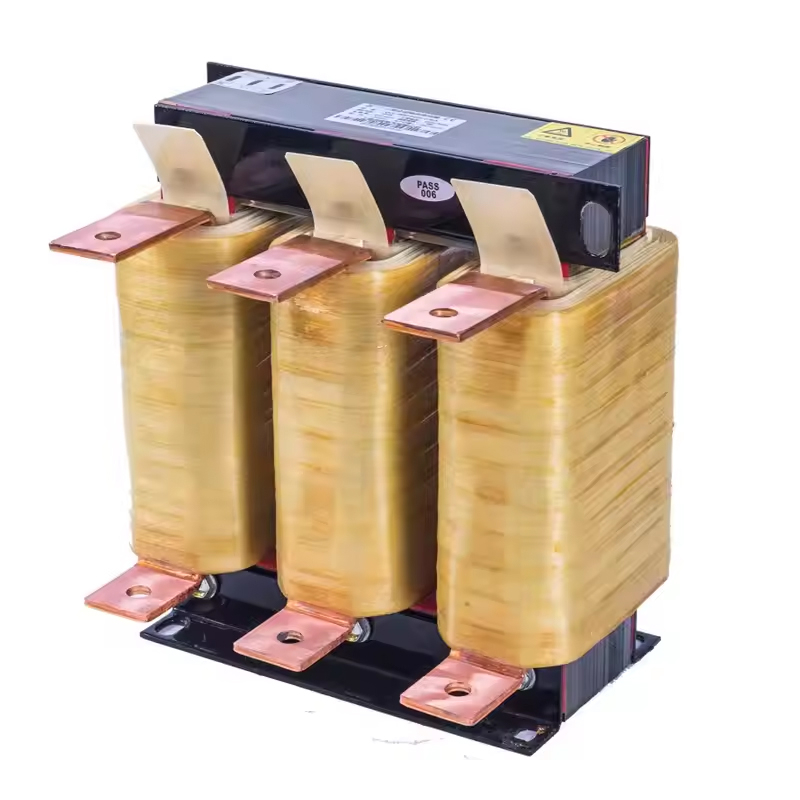

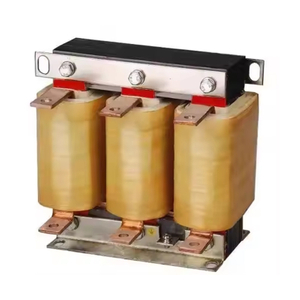

OCL
Hars
3A-1600A
220VAC-3300VAC
2-8KHz
50/60Hz.
The input reactor is mounted at the output of the frequency inverter.It is used for limit ing the capactive charging current of the connection cable between the frequency in verter and the moto,and passivating the ovltage buildup rate of PWM form the fre quency inveter and the motor.
1. Limit dv/dt to 500V/us
2. Limit the overvoltage of motor terminal to :1000V to 400V~(rms)
3. The interference occurred form the contalled between the motor and the filter
4. Reduce the earth leakage current of motor
Work voltage:220VAC-3300VAC
Work frequency:50/60Hz
Work current:3A-1600A
Carrier frequency:2-8KHz
Insulation class:class F,H
Operation Environment:-10℃+45℃，rated value wont't lower,when higer than 45℃,and every 1℃,the current will step down 2%
Protction class:IP00-ip22
Voltage drop:＜4% higher than the range will cause the loss of torque
Max Current:1.5×Rated current ,continuous 60S
Noise:≤65dB
Temperature Rise:≤85K
Dielectric strength:Core Coil 3000VAC/50Hz/5mA/10s no electric arcing puncture(factory test)
Insulation Resistor:1000VDC insulation resistance value≥100MΩ
Under seal level 2000m
Runing ambient temperature-25℃~+45℃，comparative moisture not over 90%
No hazardous gas,no inflammables and explosives
With well-Ventilated condition,ventilation devices shall be mounted if installation in panels
IEC289:1987Reactor
GB10229-88Reactor(eqvlEC289:1987)
JB9644-1999Reactorsusedforsemiconductorelectricaldriving

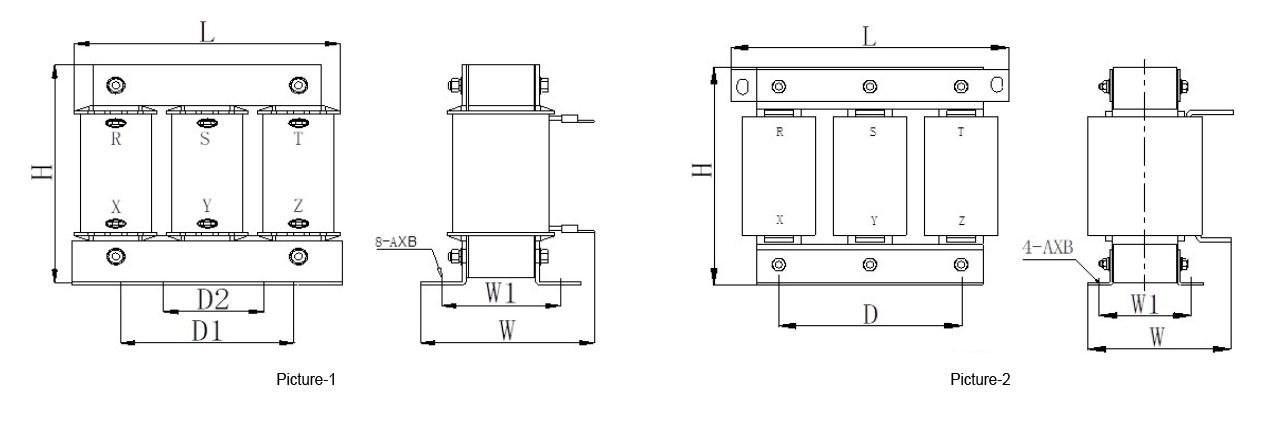

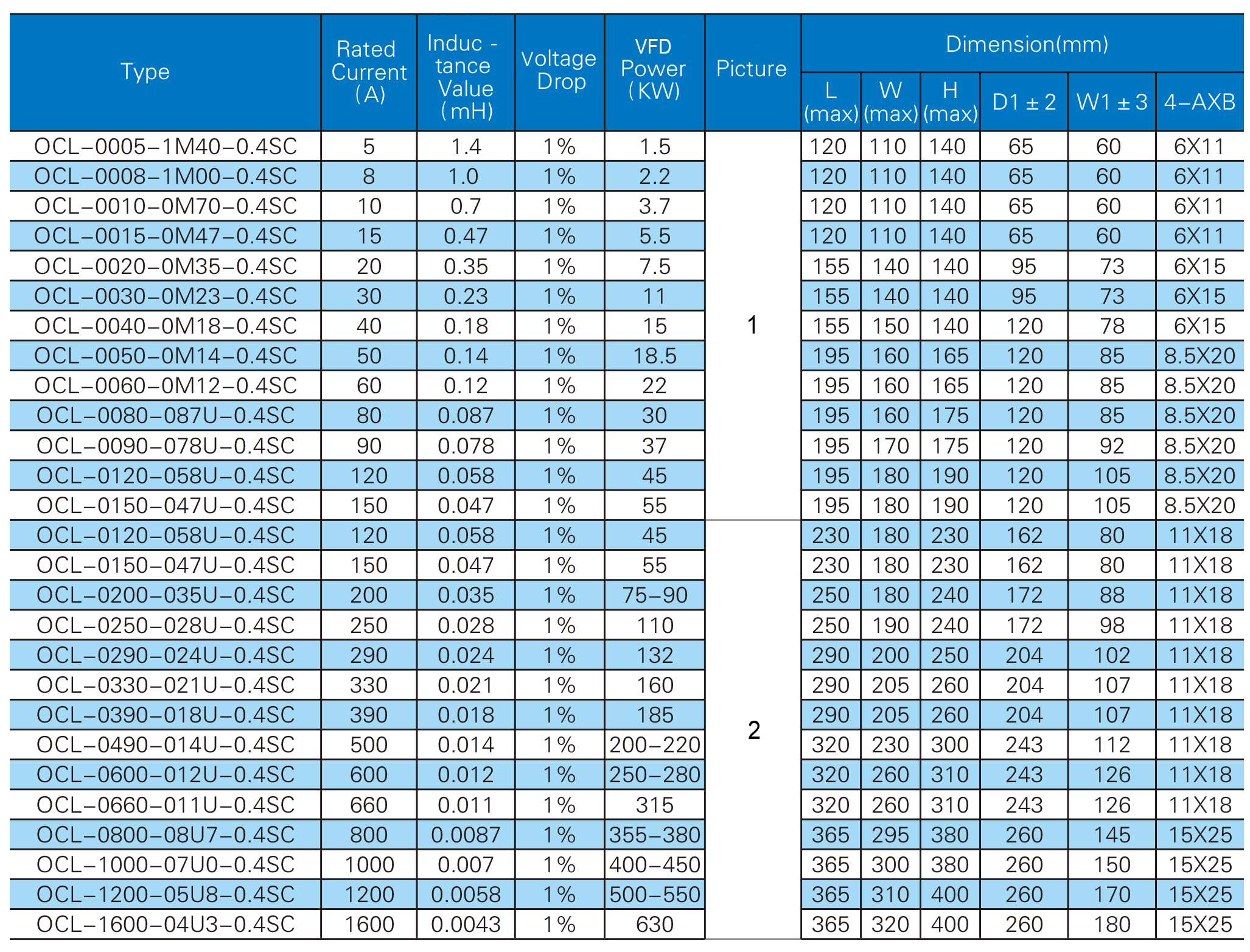

Product Size
Company Profile
We were founded in 2008, a high-tech enterprise specializing in the r&d, production, sales and technical services of industrial inverters. Currently, there are more than 200 employees, including 2 doctor and more than 10 master . More than 50% of them have professional inverter technology, and we have strong product r&d and technical support capabilities. As a high-tech enterprise supported by the government, Hars electric enjoys many honors such as government subsidies and factory provision. The company has obtained a number of invention patents, utility model patents and product appearance patents, the product passed the ISO9001:2010 quality system certification. Hars electric independently developed a series of products, powerful function, flexible control, excellent performance, can meet all kinds of mechanical support, system integration and industrial application needs, in cement, paper, machine tools, textile, metallurgy, lifting, oil, plastics, chemical, municipal and other industries have been widely used. Spread electric has 1 r&d center, 2 production plants, 10 offices and more than 500 dealers. lts products are also exported to the Middle East, Africa and southeast Asia. The company has a professional pre-sales, sales, after-sales technical service team, to provide professional services for custom-ers throughout the process. Spread electric to "win customers praise as the only goal",as always adhering to the" service delivery value, quality casting brilliant "faith, commit-ted to the development of inverter drive field, create value for customers, creating opportunities for staff ,take responsibility for society, to achieve the harmonious and common development between the company and the society, employees and customers.
Q1. Where is your factory and Company?
A: We are based in Anhui Province, China, start from 2017,sell to Domestic Market(75.00%),Eastern Asia(10.00%),Southeast Asia(5.00%),Africa(5.00%),Mid East(5.00%).
A: We has obtained ISO9001:2015 quality management system certification and EU CE certification.Always a pre-production VFD sample before mass production; Always final Inspection before shipment.
A: We are exper manufacturer for industrial inverters for over 15 years.We specialize in keeping lead times low and providing high stability of the frequency converters. It has been honored with awards such as the National Innovation Fund, High-tech Research Subsidy, Product Innovation Award, and Most Valuable Investment Award. With continuous research and development efforts, our products have evolved into three major series and over ten specialized models, earning five invention patents and more than thirty utility model patents.
A : Yes, we accept OEM and ODM with your autherization.
A : 1pc for test order is also accepted,only customized products will ask for MOQ.
A: Please send us your machine details, we will provide you most suitable model type.
A: We accept T/T, L/C, D/A, D/P, WESTERN UNION, PAYPAL, CASH, etc.
A: For 2000pcs inverter, it usually needs one week to finish.
A: Below 75KW, it's carton package; 75kW and above, it's wooden package.
A: All orders are completed via email,fax and online message.Please feel free contact with us.Our staff will service for you.
