Hybrid Inverter Manufacturer & Supplier

The HARS Hybrid Solar Inverter is a versatile hybrid grid-tied inverter and controller combo (high-frequency unit) that outputs single-phase pure sine wave. It integrates the functionalities of an inverter, a solar charger, and a battery charger, all within a portable form factor. It supports uninterruptible power supply (UPS) switching and features an LCD display that offers user-configurable and easily accessible button operations. It allows for setting battery charging voltage and current, multiple power input and output priority configurations, and adjustable output AC voltage and frequency, making it suitable for various grid environments. Additionally, it supports online data monitoring via a mobile app.

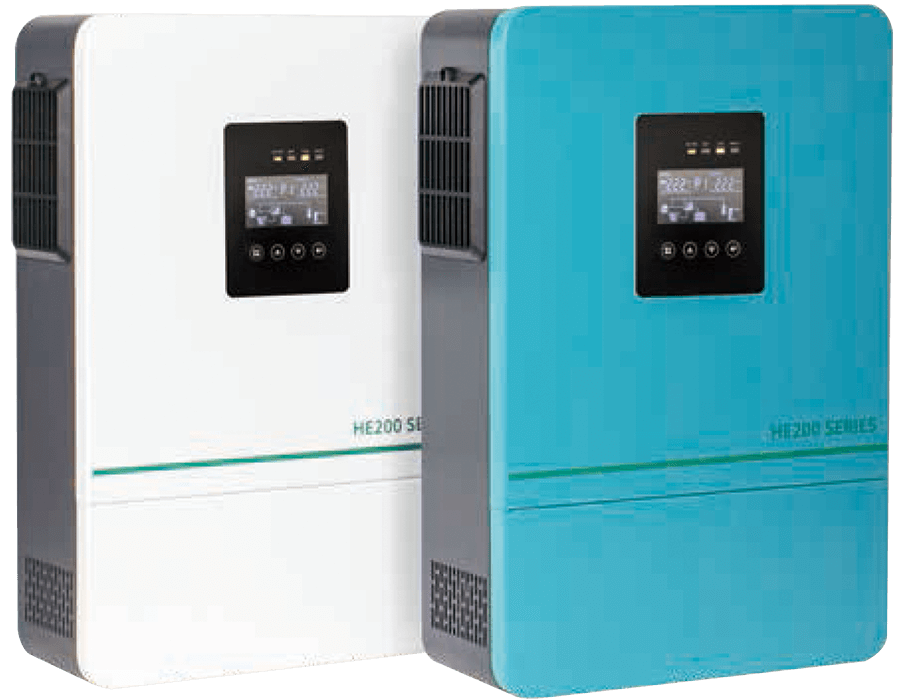

Hybrid-Inverter (1)
line     HYBRID INVERTER MANUFACTURER    line

Hars Hybrid Inverter Series

Can't Find Ideal Hybrid Inverter For Your Industry?

We provide custom solutions to all our customers and offer professional advice that you can take advantage of.
line     HE200-4200 Series    line

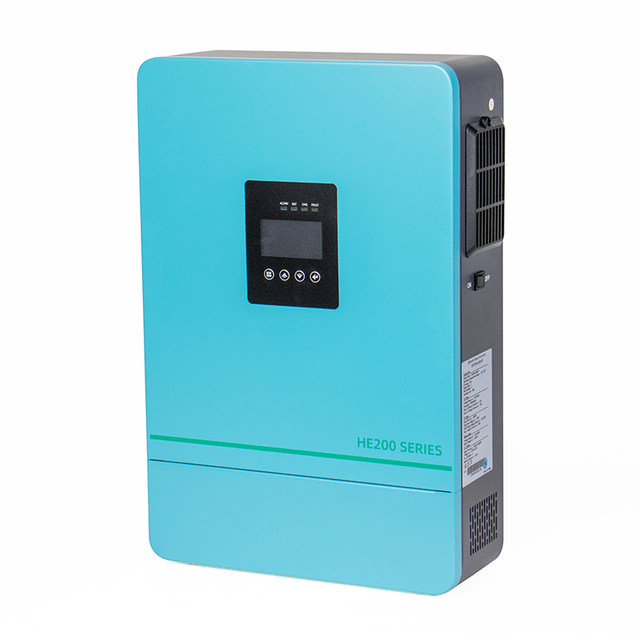

HE200-4200 Hybrid Inverter

The HE200-4200 is a versatile hybrid grid-tied inverter and controller combo (high-frequency unit) that outputs single-phase pure sine wave. It integrates the functionalities of an inverter, a solar charger, and a battery charger, all within a portable form factor. It supports uninterruptible power supply (UPS) switching and features an LCD display that offers user-configurable and easily accessible button operations. It allows for setting battery charging voltage and current, multiple power input and output priority configurations, and adjustable output AC voltage and frequency, making it suitable for various grid environments. Additionally, it supports online data monitoring via a mobile app.
line    HYBRID INVERTER PARAMETERS   line

HE200-4200 Hybrid Inverter Technical Specifications

  HE200-4200 Hybrid Inverter
   Inverter Output
   Model   HE200-4200
   Maximum Output Power   3600W
   Maximum Output Voltage   240Vac±5%（Single Phase)
   Maximum Output Current   15.7A
   Maximum Output Frequency   50/60Hz
   Output Waveform   Pure Sine Wave
   Output Topology    L+N+PE
   Maximum Parallel Units

   Battery Type    Lead-acid/Lithium Battery
   Rated Battery Voltage    24Vdc
   Maximum Hybrid PV Charging Current    100A
   Charging Modes    Dual-path/Tri-path/Auto Configuration

   MPPT Channels    1
   Maximum Input Power    5000W
   Maximum Open Circuit Voltage    500Vdc
   Maximum Input Short Circuit Current    18A
   Input Operating Voltage Range    40~450Vdc
   Maximum PV Charging Efficiency    99.5%

   Input Voltage Range    90~280Vac
   Rated Input Voltage    220Vac
   Input Frequency    50/60Hz
   Maximum Current    20A

   Dimensions    420*298*106
   Net Weight    6.46kg
   Gross Weight    7.80kg
   Protection Rating    IP21
   Operating Temperature    -10℃~50℃
   Cooling Method    Intelligent Air Cooling
   Humidity    5%~95%
line    HYBRID INVERTER CHARACTERISTICS     line

HE200-4200 Product Features

6
  • Hybrid grid-tied design, providing AC power in environments without grid access.
  • High-frequency design reduces overall weight, offers high power density, high efficiency utilization, and low no-load loss.
  • Configurable charging/discharging voltage parameters via buttons, enabling flexible battery capacity settings.
  • Adjustable working modes (Grid Priority, PV Priority, PBG Priority).
  • Configurable output AC voltage and frequency via buttons, adaptable to different grid environments.
  • Online data monitoring via mobile app to track the operating status of the inverter-controller combo.
  • Equipped with CAN/RS485 for BMS communication.
  • Single AC output.

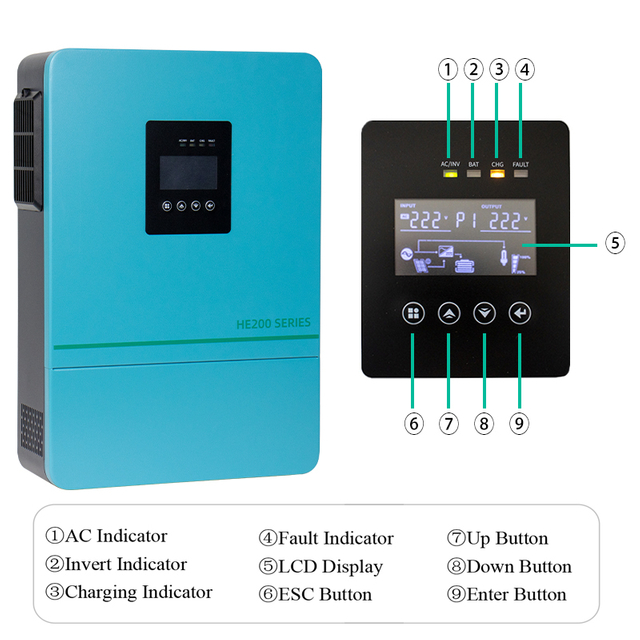

① AC Indicator Light；② Inverter Indicator Light；③ Charging Indicator Light；
④ Fault Indicator Light；⑤ LED Display Screen；⑥ Exit Button；⑦ Page Up/Query Button；⑧ Page Down/Query Button；⑨ Function Setting/Confirm Button；⑩ On/Off Button；⑪ AC Input；⑫ Main Output；⑬ WIFI/GPRS Communication Port；⑭ Dry Contact；⑮ CAN/RS485/BMS Port；⑯ Battery Positive Input；⑰ PV Input；⑱ Battery Negative Input；
line     HE200-7200 Series    line

HE200-7200 Hybrid Inverter

The HE200-7200 is a versatile hybrid grid-tied inverter and controller combo (high-frequency unit) that outputs single-phase pure sine wave. It integrates thefunctionalities of an inverter, a solar charger, and a battery charger, all within a portable form factor. It supports uninterruptible power supply (UPS) switching and features an LCD display that offers user-configurable and easily accessible button operations. It allows for setting battery charging voltage and current, multiple power input and output priority configurations, and adjustable output AC voltage and frequency, making it suitable for various grid environments. Additionally, it supports online data monitoring via a mobile app.
1
line    HYBRID INVERTER PARAMETERS   line

HE200-7200 Hybrid Inverter Technical Specifications

  HE200-7200 Hybrid Inverter
   Inverter Output
   Model   HE200-7200
   Maximum Output Power   6200W
   Maximum Output Voltage   240Vac±5%（Single Phase)
   Maximum Output Current   27A
   Maximum Output Frequency   50/60Hz
   Output Waveform   Sine Wave
   Output Topology   L1+N1+L2+N2+PE
   Maximum Parallel Units

   Battery Type    Lead-acid/Lithium Battery
   Rated Battery Voltage    48Vdc
   Maximum Hybrid PV Charging Current    120A
   Charging Modes    Two way/three way /automatic setting

   MPPT Channels    1
   Maximum Input Power    9000W
   Maximum Open Circuit Voltage    500Vdc
   Maximum Input Short Circuit Current    27A
   Input Operating Voltage Range    60~450Vdc
   Maximum PV Charging Efficiency    99.5%

   Input Voltage Range    90~280Vac
   Rated Input Voltage    220Vac
   Input Frequency    50/60Hz
   Maximum Current    40A

   Dimensions    395*332.4*116.2
   Net Weight    8.20kg
   Gross Weight    9.60kg
   Protection Rating    IP21
   Operating Temperature    -10℃~50℃
   Cooling Method    Intelligent Air Cooling
   Humidity    5%~95%
line    HYBRID INVERTER CHARACTERISTICS     line

HE200-7200 Product Features

HE200-6500-Product-Features
  • Hybrid grid-tied design, providing AC power in environments without grid access.
  • High-frequency design reduces overall weight, offers high power density, high efficiency utilization, and low no-load loss.
  • Configurable charging/discharging voltage parameters via buttons, enabling flexible battery capacity settings.
  • Adjustable working modes (Grid Priority, PV Priority, PBG Priority).
  • Configurable output AC voltage and frequency via buttons, adaptable to different grid environments.
  • Online data monitoring via mobile app to track the operating status of the inverter-controller combo.
  • Equipped with CAN/RS485 for BMS communication.
  • Single AC output.
① AC Indicator Light；② Inverter Indicator Light；③ Charging Indicator Light；
④ Fault Indicator Light；⑤ LED Display Screen；⑥ Exit Button；⑦ Page Up/Query Button；⑧ Page Down/Query Button；⑨ Function Setting/Confirm Button；⑩ On/Off Button；⑪ AC Input；⑫ Main Output；⑬ WIFI/GPRS Communication Port；⑭ Dry Contact；⑮ CAN/RS485/BMS Port；⑯ Battery Positive Input；⑰ PV Input；⑱ Battery Negative Input；

line     HE200-6500p Series    line

HE200-6500p Hybrid Inverter

The HE200-6500 is a versatile hybrid grid-tied inverter and controller combo(high-frequency unit) that outputs single-phase pure sine wave. It integrates the functionalities of an inverter, a solar charger, and a battery charger, all within a portable form factor. It supports uninterruptible power supply (UPS) switching and features an LCD display that offers user-configurable and easily accessible button operations. It allows for setting battery charging voltage and current, multiple power input and output priority configurations, and adjustable output AC voltage and
frequency, making it suitable for various grid environments. Additionally, it supports online data monitoring via a mobile app
line    HYBRID INVERTER PARAMETERS   line

HE200-6500p Hybrid Inverter Technical Specifications

   HE200-6500p Hybrid Inverter
   Inverter Output
   Model   HE200-6500-p
   Maximum Output Power   49500W （ 9 units in parallel)   49500W （ 9 units in parallel)
   Maximum Output Voltage   240Vac±5%（Single Phase)   415Vac±5%（Three Phase）
   Maximum Output Current   215A   130A
   Maximum Output Frequency   50/60Hz
   Output Waveform   Sine Wave
   Output Topology   L1+N1+L2+N2+PE
   Maximum Parallel Units

   Battery Type    Lead-acid/Lithium Battery
   Rated Battery Voltage    48Vdc
   Maximum Hybrid PV Charging Current    80A
   Charging Modes    Dual-path/Tri-path/Auto Setting

   MPPT Channels    1 channel per unit, 9 channels for 9 units
   Maximum Input Power    6000W per channel
   Maximum Open Circuit Voltage    500Vdc
   Maximum Input Short Circuit Current    20A
   Input Operating Voltage Range    120~450Vdc
   Maximum PV Charging Efficiency    99.5%

   Input Voltage Range    90~280Vac
   Rated Input Voltage    220Vac
   Input Frequency    50/60Hz
   Maximum Current    40A

   Dimensions    458*306*114.5
   Net Weight    8.40kg
   Gross Weight    9.90kg
   Protection Rating    IP21
   Operating Temperature    -10℃~50℃
   Cooling Method    Intelligent Air Cooling
   Humidity    5%~95%
line    HYBRID INVERTER CHARACTERISTICS     line

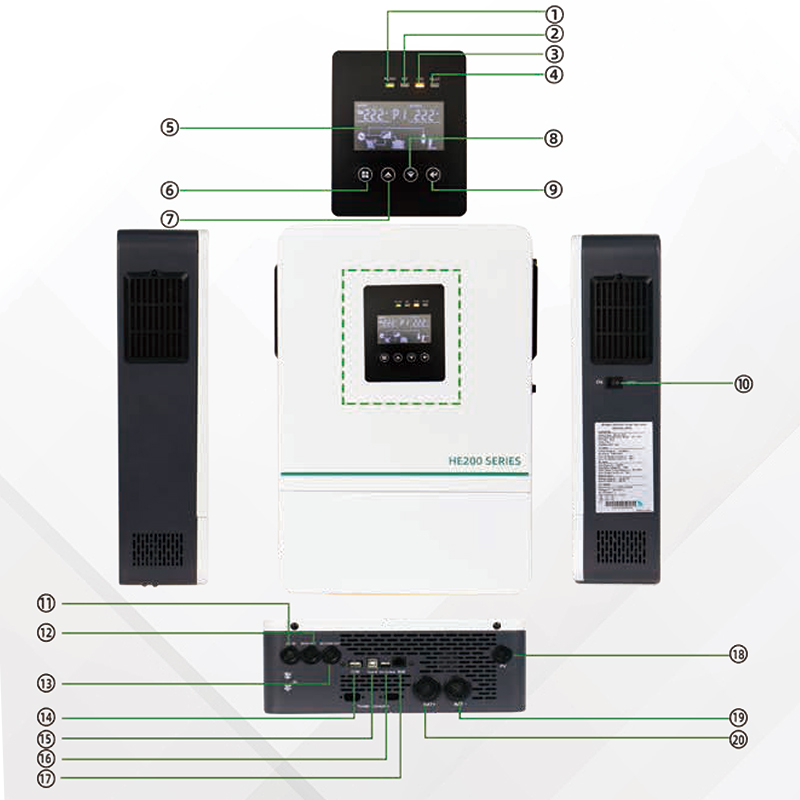

HE200-6500p Product Features

HE200-6500-Product-Features
  • Utilizes a hybrid grid design to provide AC power in environments without access to the grid.
  • Employs high-frequency design to reduce overall weight, offering high power density, high efficiency utilization, and low no-load loss.
  • Allows configuration of charging and discharging voltage parameters via buttons, enabling flexible battery capacity settings.
  • Supports configurable working modes (Grid Priority, PV Priority, Battery Priority).
  • Enables setting of output AC voltage and frequency via buttons, adapting to various grid environments.
  • Provides online data monitoring through a mobile app to track the operating status of the inverter-controller system.
  • Equipped with CAN/RS485 for BMS communication.
  • Features dual AC output.
① AC Indicator Light；② Inverter Indicator Light；③ Charging Indicator Light；
④ Fault Indicator Light；⑤ LED Display Screen；⑥ Exit Button；⑦ Page Up/Query Button；⑧ Page Down/Query Button；⑨ Function Setting/Confirm Button；⑩ On/Off Button；⑪ AC Input；⑫ Main Output；⑬ WIFI/GPRS Communication Port；⑭ Dry Contact；⑮ CAN/RS485/BMS Port；⑯ Battery Positive Input；⑰ PV Input；⑱ Battery Negative Input；


Optional WIFI Remote Control Module

Supports lithium battery communication, external WIFI, and generator auto-start dry contact; enables real-time monitoring and configuration via remote application.

Product Operation Diagram

Delivers high-quality AC power with high efficiency and
stable voltage.

line   HYBRID INVERTER USE SCENARIOS

Hybrid Inverter Application

  • Household

    Household
  • Office-Equipment

    Office Equipment
  • Farm

    Farm
  • Warehouse

    Warehouse
  • Night-Market-Stalls

    Night Market Stalls
  • Industrial-Equipment

    Industrial Equipment

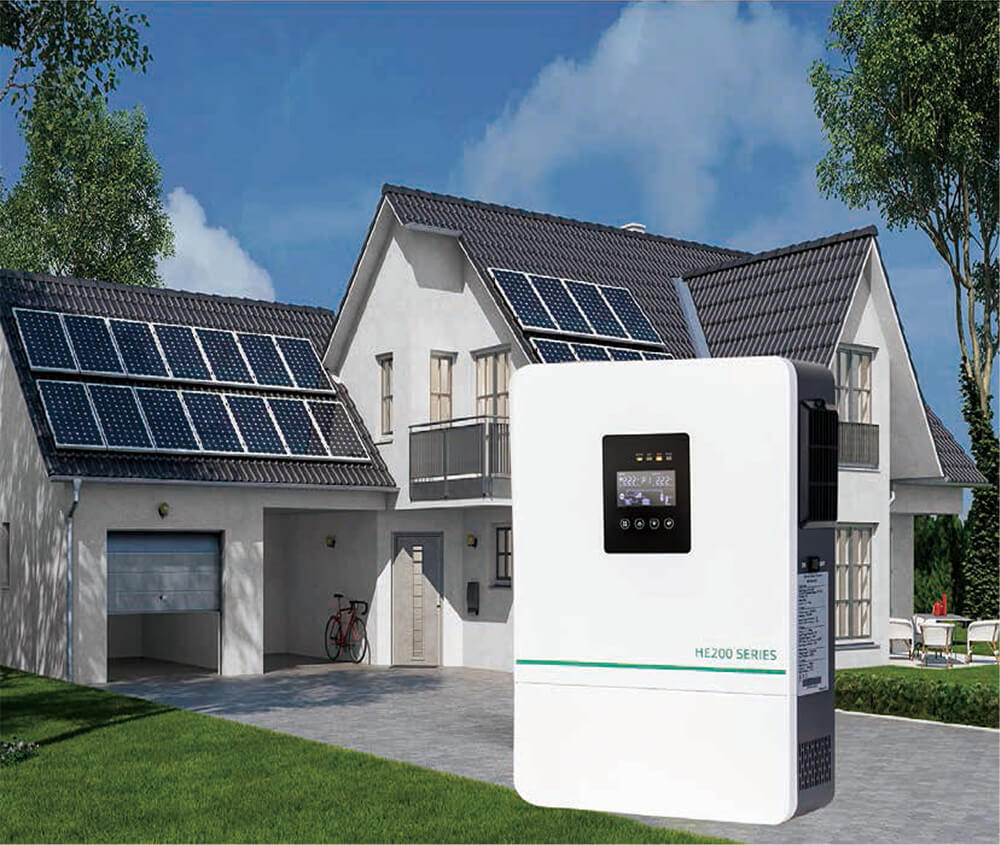

Hybrid-Inverter-Application
line   HYBRID INVERTER USE SCENARIOS  line

Hybrid Inverter Manual Downloads

Name Size Thumbnail Download
Hybrid Solar Inverter Product Manual.pdf 2.77MB download Download
