HE200-4200-white
Hars
24V
240Vac±5% Single Phase
3.6KW
50Hz/60Hz

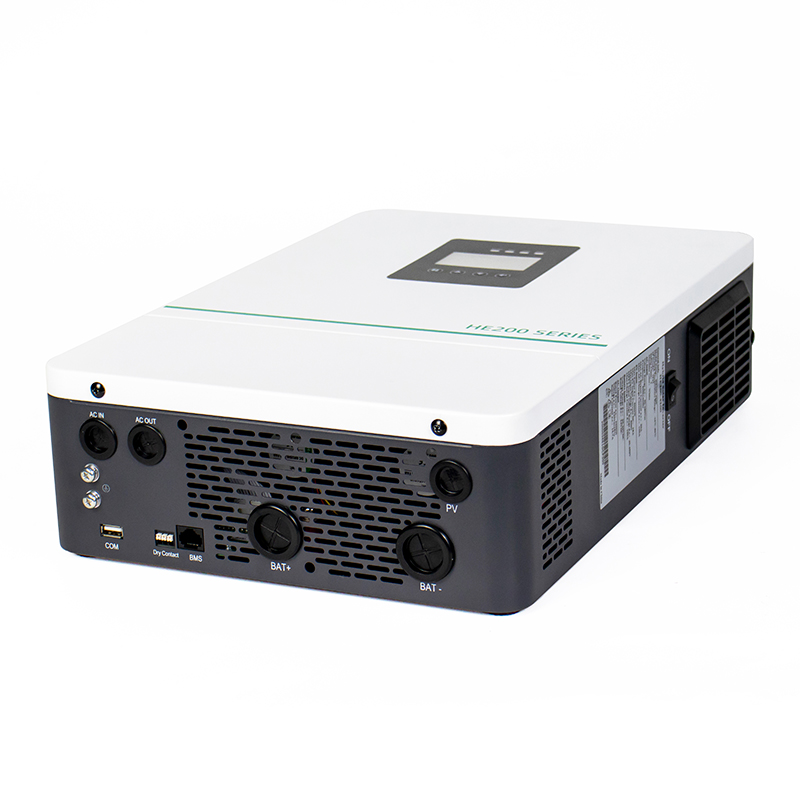

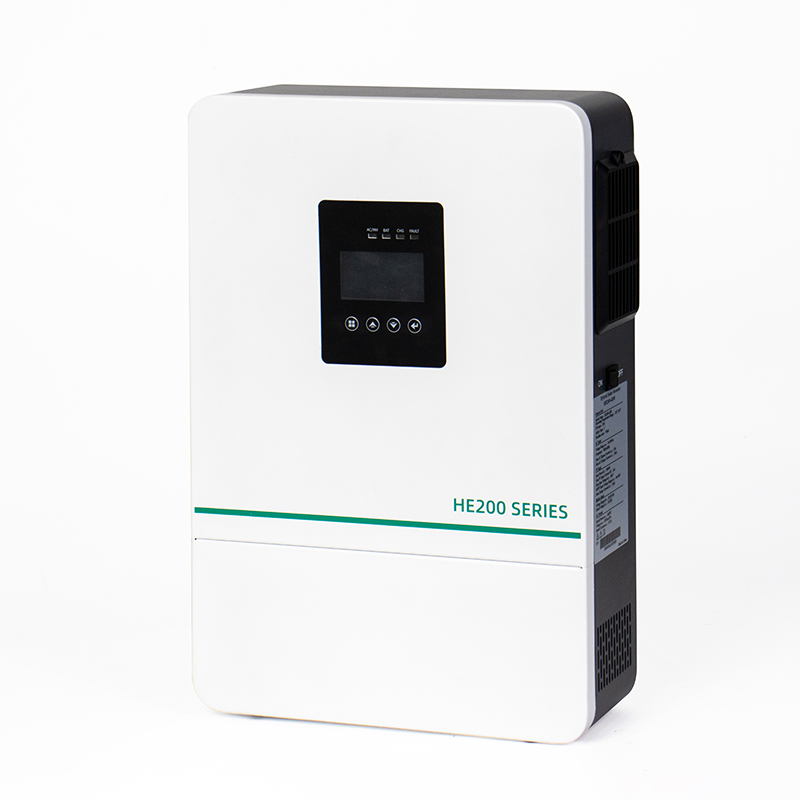

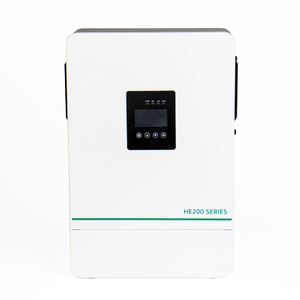

The HE200-4200 is a versatile hybrid grid-tied inverter and controller combo (high-frequency unit) that outputs single-phase pure sine wave. It integrates the functionalities of an inverter, a solar charger, and a battery charger, all within a portable form factor. It supports uninterruptible power supply (UPS) switching and features an LCD display that offers user-configurable and easily accessible button operations. It allows for setting battery charging voltage and current, multiple power input and output priority configurations, and adjustable output AC voltage and frequency, making it suitable for various grid environments. Additionally, it supports online data monitoring via a mobile app.
Hybrid grid-tied design, providing AC power in environments without grid access.
High-frequency design reduces overall weight, offers high power density, high efficiency utilization, and low no-load loss.
Configurable charging/discharging voltage parameters via buttons, enabling flexible battery capacity settings.
Adjustable working modes (Grid Priority, PV Priority, PBG Priority).
Configurable output AC voltage and frequency via buttons, adaptable to different grid environments.
Online data monitoring via mobile app to track the operating status of the inverter-controller combo.
Equipped with CAN/RS485 for BMS communication.
Single AC output.
① AC Indicator Light；② Inverter Indicator Light；③ Charging Indicator Light；
④ Fault Indicator Light；⑤ LED Display Screen；⑥ Exit Button；⑦ Page Up/Query Button；
⑧ Page Down/Query Button；⑨ Function Setting/Confirm Button；⑩ On/Off Button；
⑪ AC Input；⑫ Main Output；⑬ WIFI/GPRS Communication Port；⑭ Dry Contact；
⑮ CAN/RS485/BMS Port；⑯ Battery Positive Input；⑰ PV Input；⑱ Battery Negative Input；
