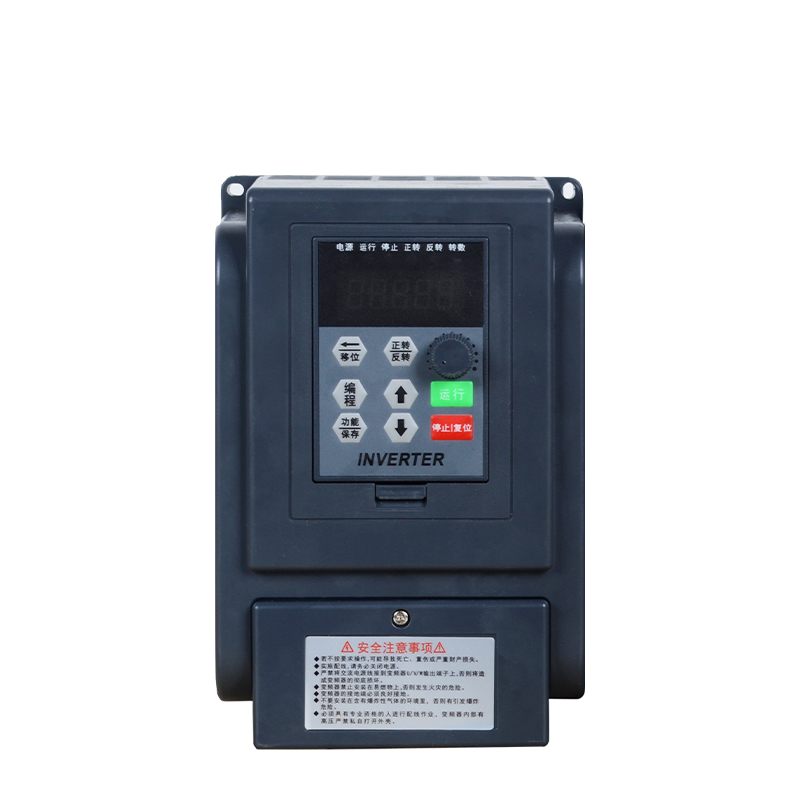

HS800-0.75
Single-phase 220-240V
Single-phase 220-240V
0.75kw 1.5kw
50-60HZ
The HS800 series frequency inverter is a general-purpose vector inverter developed for various fields, including traditional agriculture, industry, and manufacturing. It is widely applicable in industries such as fans, pumps, printing and packaging, power materials, metallurgy, chemicals, and municipal fire protection. This series of variable frequency drives features outstanding performance, rich functionalities, compact structure, simple operation, safety and reliability, and excellent adaptability to different environments.
| HS800 Models | Product Power | Input Voltage/Frequency | Output Voltage/Frequency | Output Current (A) | Net Weight（kg) | Product Dimensions (mm) | Installation Dimensions (mm) |
| 800-0.4S1 | 0.4KW | Single-phase220-240V 50-60HZ | Single-phase 220-240V 50-60HZ | 3.0A | 0.85 kg | 160*115*110 mm | 105*152 mm |
| 800-0.75S1 | 0.75KW | 5.0A | 1.05 kg | 180*123*135 mm | |||
| 800-1.5S1 | 1.5KW | 8.0A | 1.05 kg | ||||
| 810-0.1S1 | 0.1W | Single-phase 220-240V 50-60HZ | Single-phase 220-240V 50-60HZ | 1.5A | 0.35 kg | 135*60*100 mm | 53*80 mm |
| 810-0.2S1 | 0.2KW | 3.0A | |||||
| 810-0.4S1 | 0.4KW | 4.0A | |||||
| 810-0.75S1 | 0.75KW | 5.0A |
| Terminal label | Function description | |
 | L, N | Single phase AC 220V input terminal |
| U, V, W | Output terminal connect to Single phase 220V AC motor | |
| GND | Grounding terminal |
Note: "r/min": Revolution per minute
“F”: Frequency setting
“H”: Operating frequency
“A”: Operating current
Method of returning to the original interface after setting parameters:
1. Power off and then power on again.
2. Select d-00 and press SET.
3. Long press the SET key.
220V single phase motor, Non-removed capacitor /Removed capacitor
We were founded in 2008, a high-tech enterprise specializing in the r&d, production, sales and technical services of industrial variable frequency converters. Currently, there are more than 200 employees, including 2 doctor and more than 10 master . More than 50% of them have professional inverter technology, and we have strong product r&d and technical support capabilities. As a high-tech enterprise supported by the government, Hars electric enjoys many honors such as government subsidies and factory provision. The company has obtained a number of invention patents, utility model patents and product appearance patents, the product passed the ISO9001:2010 quality system certification. Hars electric independently developed a series of products, powerful function, flexible control, excellent performance, can meet all kinds of mechanical support, system integration and industrial application needs, in cement, paper, machine tools, textile, metallurgy, lifting, oil, plastics, chemical, municipal and other industries have been widely used. Spread electric has 1 r&d center, 2 production plants, 10 offices and more than 500 dealers. lts products are also exported to the Middle East, Africa and southeast Asia. The company has a professional pre-sales, sales, after-sales technical service team, to provide professional services for custom-ers throughout the process. Spread electric to "win customers praise as the only goal",as always adhering to the" service delivery value, quality casting brilliant "faith, commit-ted to the development of inverter drive field, create value for customers, creating opportunities for staff ,take responsibility for society, to achieve the harmonious and common development between the company and the society, employees and customers.
A: We are based in Anhui Province, China, start from 2017,sell to Domestic Market(75.00%),Eastern Asia(10.00%),Southeast Asia(5.00%),Africa(5.00%),Mid East(5.00%).
A: We has obtained ISO9001:2015 quality management system certification and EU CE certification.Always a pre-production VFD sample before mass production; Always final Inspection before shipment.
A: We are exper manufacturer for industrial inverters for over 15 years.We specialize in keeping lead times low and providing high stability of the frequency converters. It has been honored with awards such as the National Innovation Fund, High-tech Research Subsidy, Product Innovation Award, and Most Valuable Investment Award. With continuous research and development efforts, our products have evolved into three major series and over ten specialized models, earning five invention patents and more than thirty utility model patents.
A : Yes, we accept OEM and ODM with your autherization.
A : 1pc for test order is also accepted,only customized products will ask for MOQ.
A: Please send us your machine details, we will provide you most suitable model type.
A: We accept T/T, L/C, D/A, D/P, WESTERN UNION, PAYPAL, CASH, etc.
A: For 2000pcs inverter, it usually needs one week to finish.
A: Below 75KW, it's carton package; 75KW and above, it's wooden package.
A: Email: sales@vfdspread.com ; All orders are completed via email,fax and online message. Please feel free contact with us. Our staff will service for you.
