RXHG
Hars
1Ω≤R±5%（J），1Ω＞R±10%（K）
No visible damage △R≤±（5%R+0.05Ω）10 times 5s
R≥100MΩ 1min DC 1000V

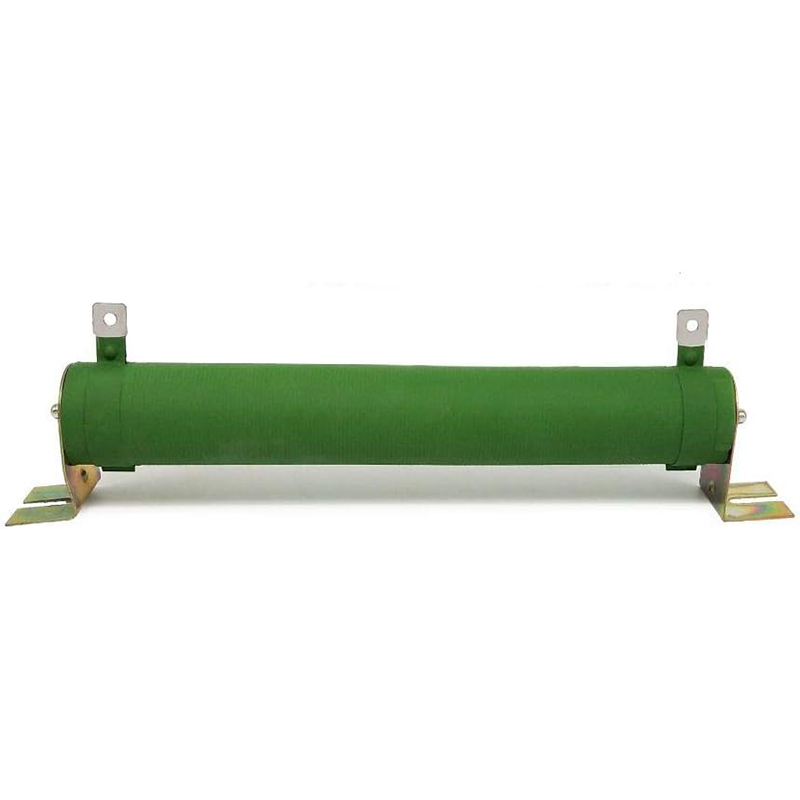

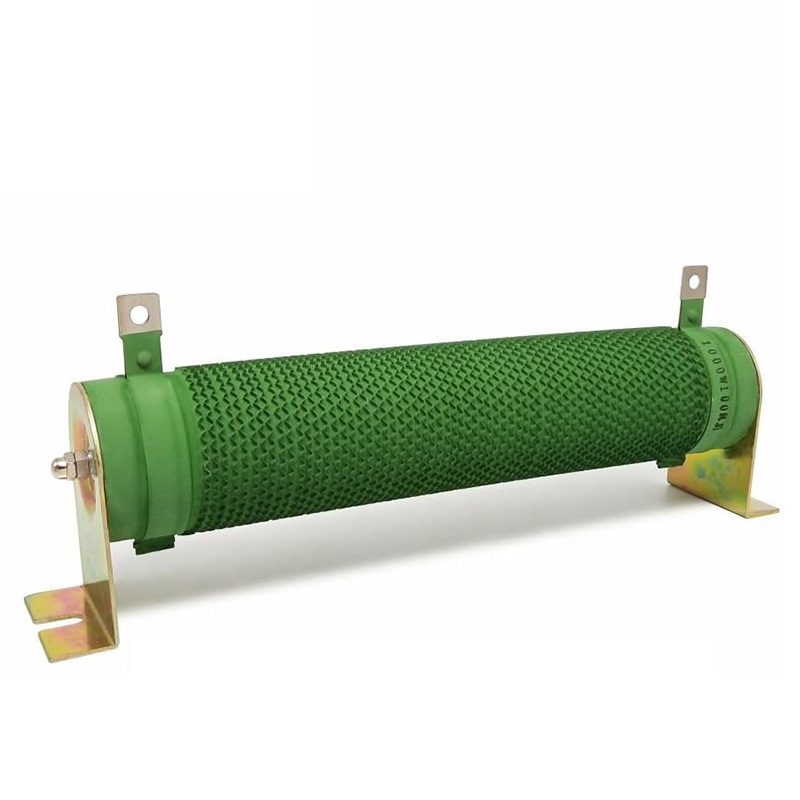

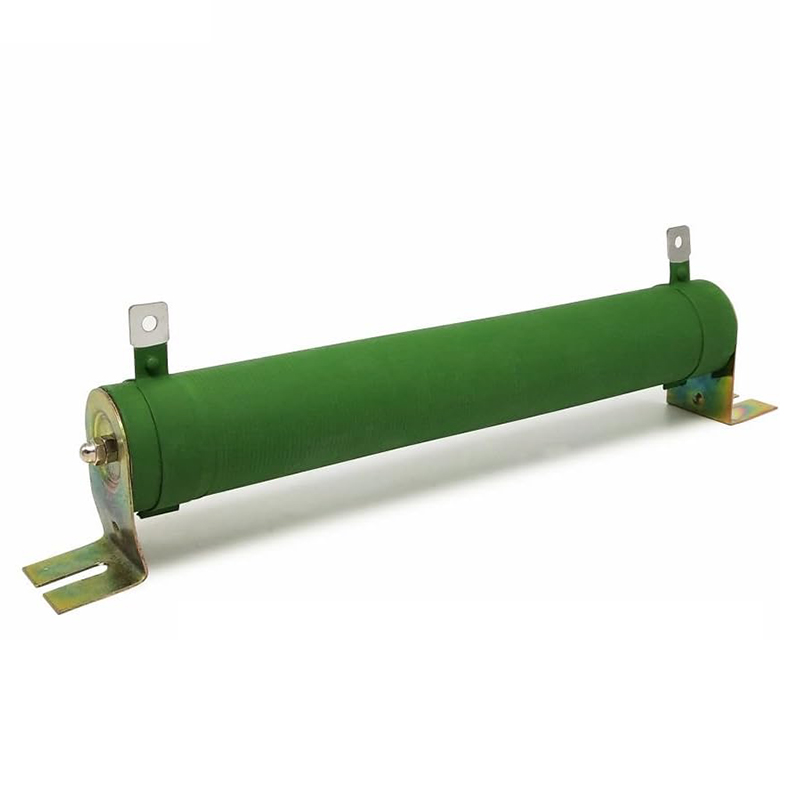

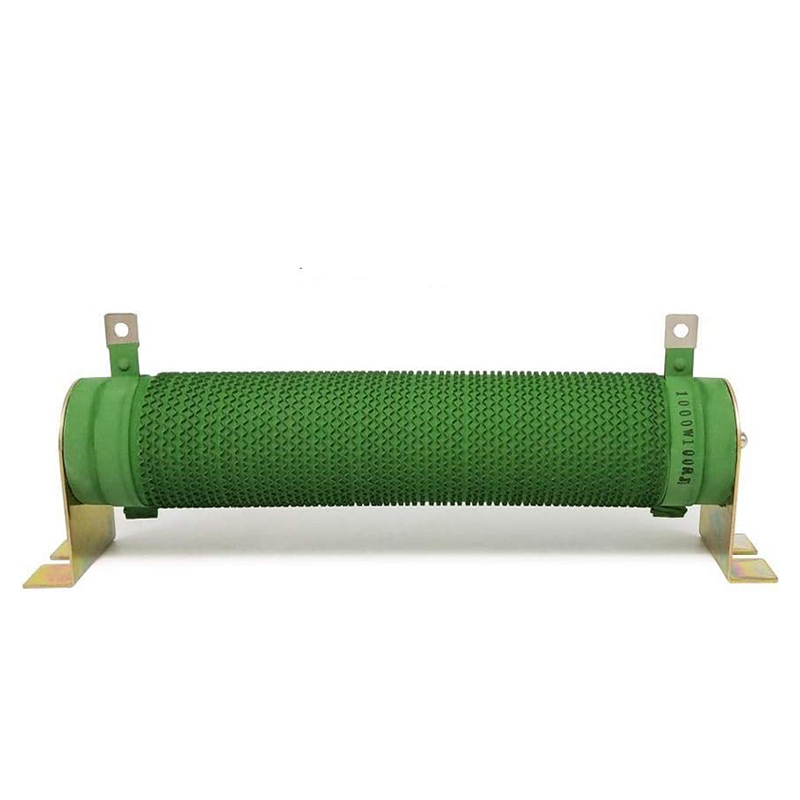

RXHG coatings type winding resistor is a kind of power mode,the product use the wave resistance olloy in the form of side winding on the ceramin matrix The surface coating insulation resistance to high temperature coating,is conducive to heat dissipation,and is equipped with a mounting bracket,a resistor has large power,strong overload capacity resistance,convenient installation and other feature.
1. As a braking resistor to protect the inverters,servos,etc,from danmage by regenerative energy of the motor;
2. As a resistive load in power electronic load tests;
3. As a sampling resister,limiting resistor,starting resistor,or protective resistor in power electronic equipment.
Resistance value and the change range:1Ω≤R±5%（J），1Ω＞R±10%（K）

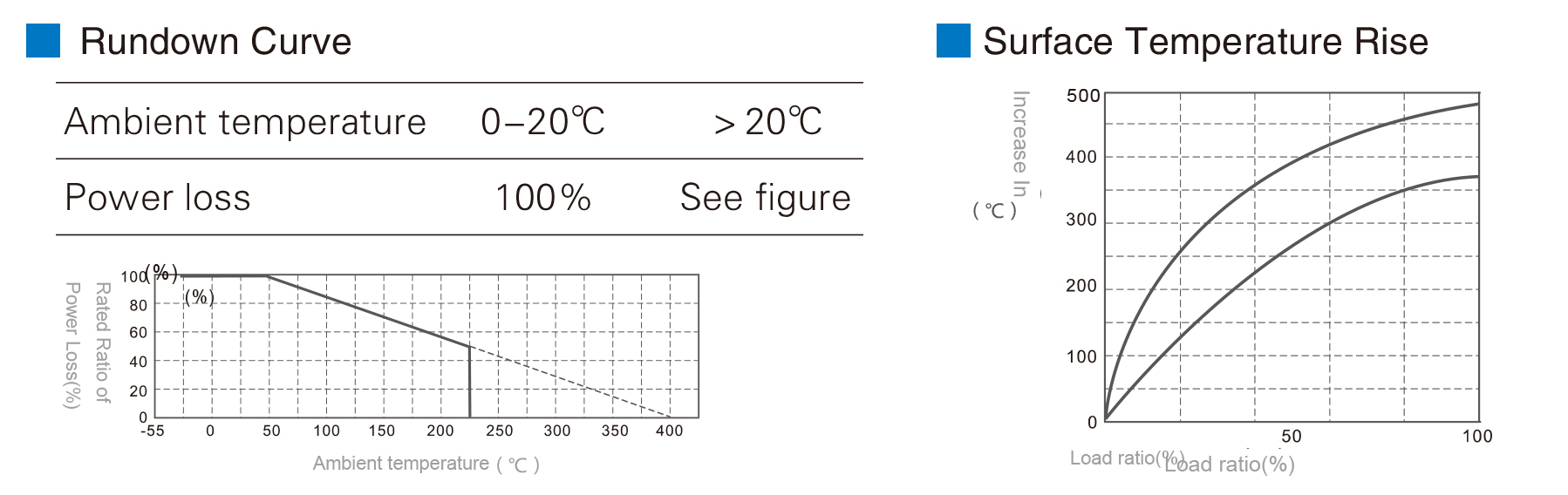

Rated load:The maximum surface temperature,50~200W≤275℃，＞200W≤350℃
Short-time overload:No visible damage △R≤±（5%R+0.05Ω）10 times 5s
Insulation resistance:R≥100MΩ 1min DC 1000V
Withstanding voltage :No visible damge,no arcing breakdown △R≤±（0.1%R+0.05）AC 3000V 5S
Resistance-temperature characteristic:±260PPM/℃（less than 5Ωdon't test)
Terminial strength No looseness or mechanical damage 45N 30s
Resistance strength No visible damage 200N 30S
Withstanding vibration:No visible damage △R≤±（0.1%R+0.05Ω）f:5-200Hz a=1gX.Y.Z/2h
Heart resistance:In addition to the terminal no pbvious discoloration and damage,marked clearly 350℃ 2hours
Heat shock No visible mechanical damage,after 30minute rated overload
Wateriogging resistance:No visible mechanical damage,marked clearly △R≤±（5%R+0.05Ω）Insulation resistance≥ 10MΩDC100 40℃ 95%RH 500hours
Durability(rated overload):No visible damage,marked clearly △R≤±（5%R+0.05Ω）load100%
GB/T5729-1994 Fixed redsistor used in electronic equipment
Product Type：RXHG

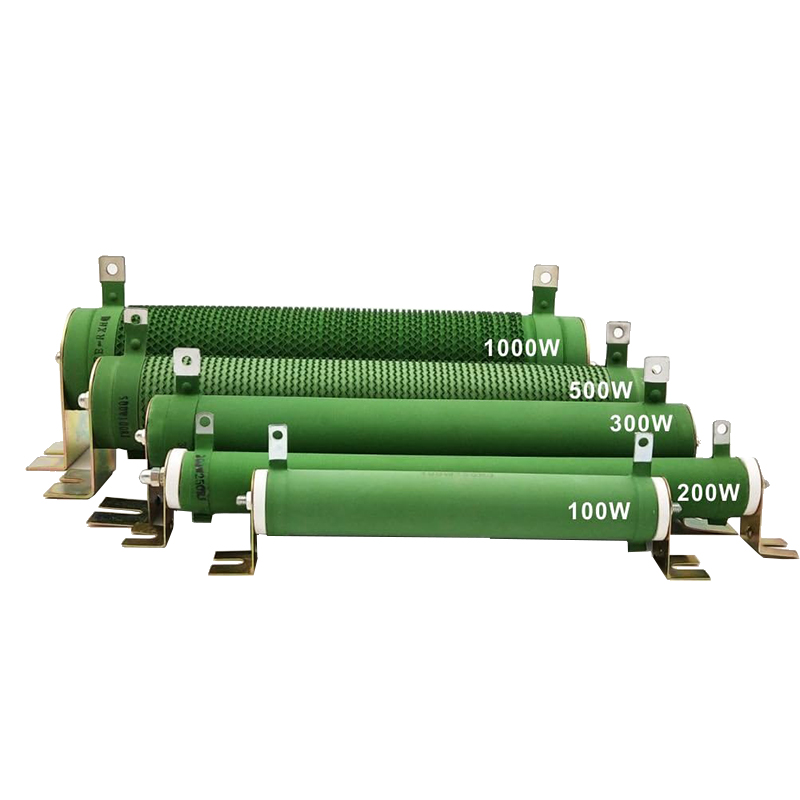

Rated Power： 60W-6000W
Resistance value(ohm)： （Ω）Indicates resistance value in units of ohms
Resistance Tolerance： H=±3% J=±5% K=±10%
