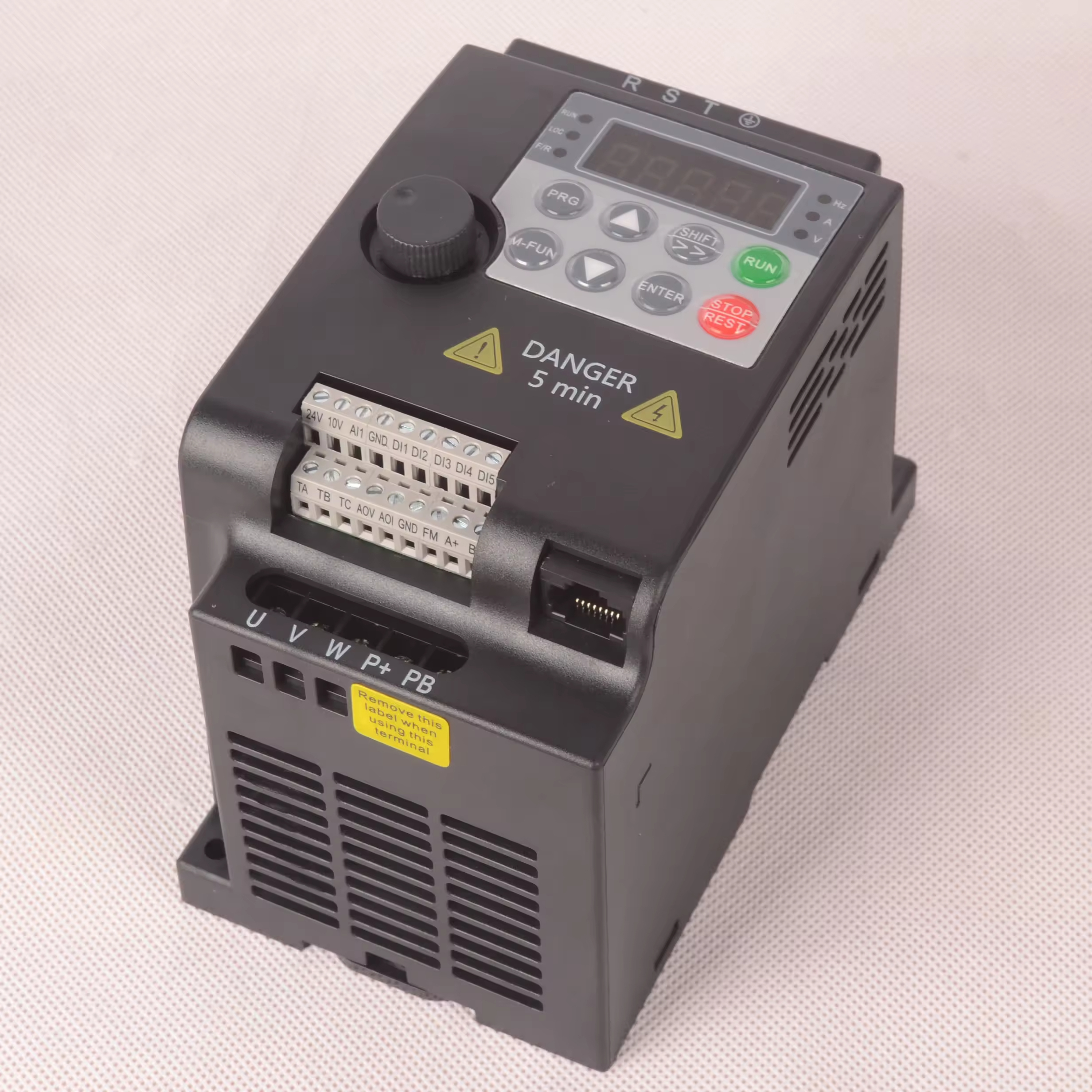

Inverters, also known as variable frequency drives (VFDs), are widely used in industrial applications to control the speed of motors. They are designed to meet the specific load characteristics of production machinery, such as the required speed range, static speed precision, and starting torque. Commonly used inverters operate using either the V/F (voltage/frequency) control method or the vector control method. These inverters typically drive frequency-controlled motors, which are distinct from standard motors due to their capacity to operate over a wide range of frequencies.
Given this flexibility, many may wonder whether long-term low-frequency operation could pose any harm to the inverter itself. The answer is not entirely straightforward. While long-term low-frequency operation can be harmful under certain conditions, such as poor ventilation or inadequate installation, it is not inherently dangerous if proper precautions are taken.
To better understand the effects of low-frequency operation on an inverter, it’s helpful to look at how inverters typically control motor speed. The V/F control method, one of the most common control techniques, simultaneously adjusts the voltage and frequency supplied to the motor to keep the motor's magnetic flux constant. This ensures that, within a broad speed range, the motor's efficiency and power factor remain relatively stable.
V/F control, also known as voltage-to-frequency control, works by maintaining a constant ratio between the voltage (V) and the frequency (F). This method has several advantages, including a relatively simple control circuit structure, lower costs, and reasonably good mechanical characteristic hardness. This makes it suitable for smooth speed control in most general-purpose applications.
In V/F control, as the inverter’s output frequency increases from 0 Hz to the base frequency (typically 50 Hz or 60 Hz, depending on the region), the output voltage increases proportionally from 0 V to the maximum output voltage. This relationship between frequency and voltage forms what is known as the basic V/F curve.
The V/F characteristic is widely applied in industrial settings. For instance, when an inverter’s output frequency increases from 0 Hz to 50 Hz, the output voltage similarly rises from 0 V to 380 V (or 480 V, depending on the system's voltage rating). The primary advantage of this approach is that it allows the motor to run efficiently across a wide speed range without significant drops in performance.
A key aspect of V/F control is the parameter settings used to adjust the inverter’s performance. These parameters include FL (the lower frequency limit), FH (the upper frequency limit), FB (the base frequency), and Fmax (the maximum frequency). For example, a typical V/F inverter might have a frequency range of 50 Hz to 500 Hz, a base frequency of 50 Hz, and a maximum output voltage of 480 V.
These settings ensure that the inverter can operate effectively across a broad range of speeds and loads. However, they also need to be carefully adjusted according to the specific characteristics of the load being driven. Different types of loads may require different V/F curve settings. Additionally, the multi-point voltage settings should be customized to suit the specific application. The default factory settings for the inverter might not always be optimal for all situations, especially in more specialized applications.
While the V/F control method is highly versatile, prolonged operation at low frequencies can have some negative consequences if not properly managed. Here’s a closer look at some potential issues that can arise from long-term low-frequency operation of an inverter:
One of the primary concerns with operating an inverter at low frequencies for extended periods is reduced cooling efficiency. Most motors and inverters rely on air circulation for cooling, which is driven by a built-in fan. At low frequencies, the motor's speed decreases, which in turn reduces the fan’s effectiveness at cooling the motor. If the motor and inverter do not receive adequate cooling, they may overheat, which could lead to insulation degradation, premature component failure, or even a complete breakdown of the motor or inverter.
Closely related to the issue of cooling is the increased thermal stress that can occur during low-frequency operation. When the inverter runs at lower frequencies, it still needs to deliver sufficient power to the motor. However, because the motor’s speed is lower, it may not be able to dissipate heat as efficiently as it does at higher speeds. This can result in localized overheating in both the motor and the inverter, particularly in areas such as the windings, power semiconductors, and other heat-sensitive components. Over time, this thermal stress can shorten the lifespan of the equipment.
At lower frequencies, the motor’s torque characteristics can also be affected. In V/F control, the inverter adjusts the voltage and frequency proportionally to maintain constant flux in the motor. However, at very low frequencies, it can be difficult to maintain sufficient torque, especially in applications that require high starting torque or torque at low speeds. If the torque becomes too low, it could result in reduced performance, slippage, or an inability to start the motor under load. This is particularly problematic in applications where precise control of motor speed and torque is required.
Another potential issue with long-term low-frequency operation is the increased risk of harmonic distortion. At low frequencies, the inverter may generate more electrical noise or harmonics, which can interfere with other equipment or cause performance issues in the motor itself. Harmonics can lead to excessive vibration, noise, and heat generation in the motor, further contributing to wear and tear over time.
Mechanical wear and tear is another concern when operating motors at low frequencies for extended periods. At lower speeds, mechanical components such as bearings and gears may experience uneven loading or lubrication issues. This can lead to increased friction, wear, and ultimately mechanical failure. Proper lubrication and regular maintenance are essential to mitigate these risks.
Despite these potential issues, it is possible to safely operate an inverter at low frequencies for extended periods if certain precautions are taken. Here are some strategies for minimizing the risks associated with long-term low-frequency operation:
One of the most important steps is to ensure that the inverter and motor are adequately cooled. This may involve improving ventilation in the installation environment, using external fans or heat sinks, or upgrading the cooling system in the motor itself. In some cases, it may be necessary to use a motor designed specifically for low-speed operation, which includes enhanced cooling mechanisms.
Careful adjustment of the V/F parameters can help mitigate some of the issues associated with low-frequency operation. For example, increasing the voltage slightly at lower frequencies can help maintain sufficient torque and reduce thermal stress on the motor. It’s also important to tailor the V/F curve to the specific load characteristics and ensure that the multi-point voltage settings are optimized for the application.
Regular monitoring and maintenance are critical for ensuring the long-term reliability of the inverter and motor. This includes checking for signs of overheating, excessive vibration, or harmonic distortion, as well as ensuring that the mechanical components are properly lubricated and in good working condition. In addition, it may be necessary to periodically adjust the V/F settings based on the operating conditions and performance of the system.
For applications where precise control of speed and torque is required, it may be beneficial to use an inverter with vector control rather than V/F control. Vector control offers more accurate regulation of motor torque and speed, especially at lower frequencies. This can help prevent issues such as torque instability or reduced cooling efficiency, making it a more robust solution for long-term low-frequency operation.
In conclusion, while long-term low-frequency operation can pose some challenges for inverters and motors, these challenges can be effectively managed with proper precautions. Ensuring adequate cooling, carefully adjusting V/F parameters, and regularly monitoring the system are key steps in preventing potential damage. In certain applications, switching to vector control may offer additional benefits.
Ultimately, the risks associated with low-frequency operation are not insurmountable, but they do require careful consideration and proactive management to ensure the long-term reliability and efficiency of the inverter system.
