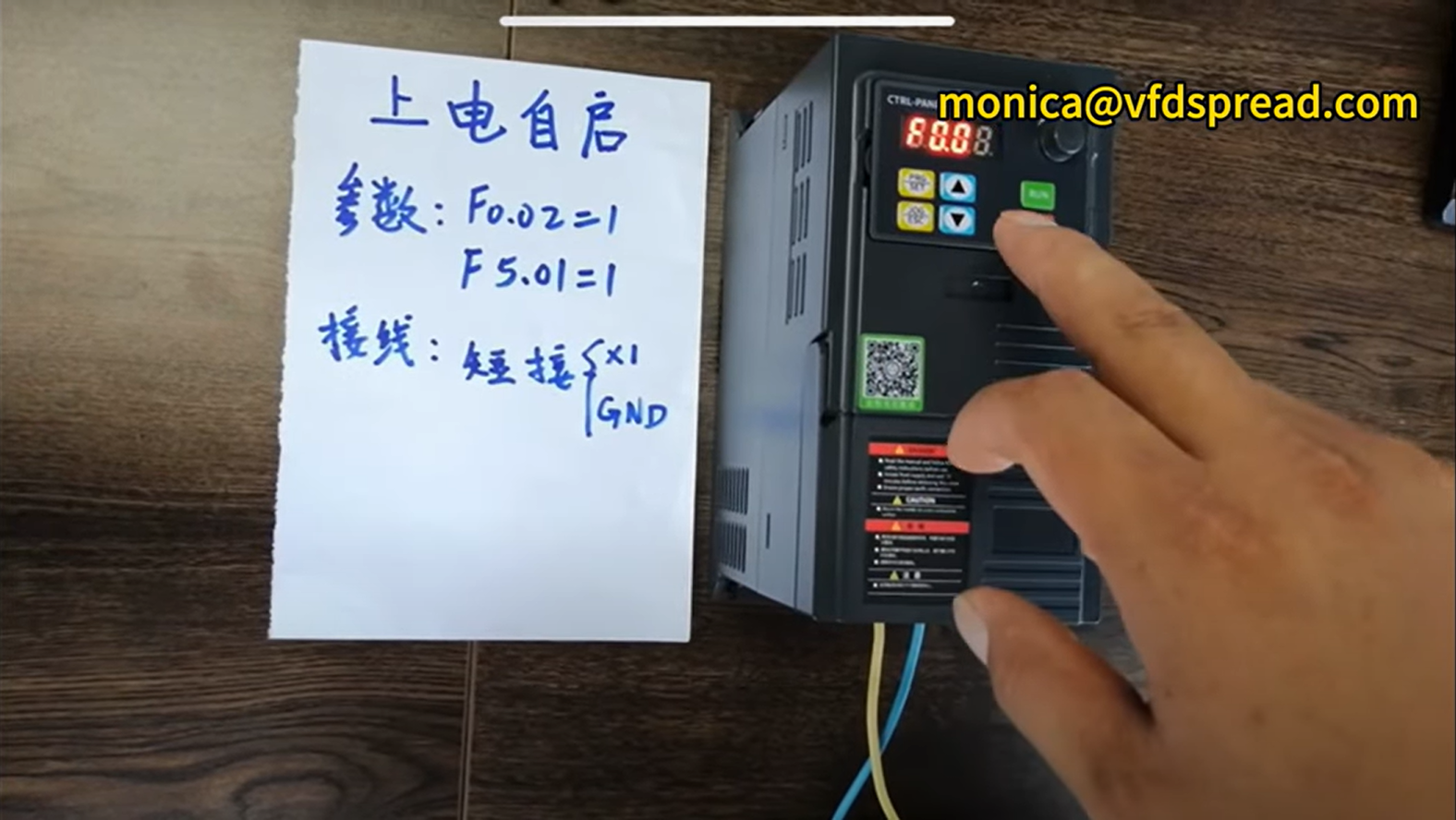

Press the "PRG" button to enter the parameter adjustment page. The display should now show "D".
Use the up and down buttons to navigate until "F" is displayed on the screen.
Once "F" is displayed, it will likely show "F0" as the first group. Press the "PRG" button to enter this group.
Use the up button to scroll through the parameters until you reach "F0.02".
Press "PRG" to select "F0.02". The current value should now be displayed.
Press the up button to change the value from 0 to 1.
Press "PRG" to confirm the new value.
After confirming "F0.02", use the up and down buttons to find the "F5" group.
Press "PRG" to enter the "F5" group.
Use the up button to scroll until you reach "F5.01".
Press "PRG" to select "F5.01". The current value should now be displayed.
Press the up button to change the value to 1.
Press "PRG" to confirm the new value.
Once "F5.01" is set to 1, the display will show "F5.02".
To exit the parameter adjustment mode, press the "JOG" button to return to the initial interface.
Connect terminal "X1" to "GND" (Ground). Ensure a secure and proper connection to avoid any electrical issues.
Turn off the power to the inverter to safely make the wiring connections.
After completing the wiring, turn the power back on.
Once the power is back on, check the display data to ensure that the inverter has started successfully.
Inverters are essential components in various electrical systems. Proper parameter setting and wiring are crucial for the effective operation of the inverter. Here's a more in-depth look at each step involved:
The inverter's parameters are settings that control its behavior and performance. Adjusting these parameters is necessary to tailor the inverter's operation to specific requirements.
The "PRG" button is used to access the parameter adjustment mode. This mode allows you to modify the inverter's settings.
Inverters typically have groups of parameters categorized under different headings, such as "F" for frequency-related settings.
Using the up and down buttons helps navigate through these groups and individual parameters.
Adjusting "F0.02" to 1 may relate to a specific function, such as enabling a feature or setting a particular mode of operation.
Similarly, "F5.01" set to 1 could correspond to another specific setting crucial for the inverter's operation.
It's essential to confirm each change by pressing the "PRG" button after setting the desired value. This action saves the new parameter setting.
Wiring the inverter correctly ensures that it functions as intended and avoids potential malfunctions or hazards.
Terminal "X1" needs to be shorted to "GND". This connection might be necessary for enabling a particular input or setting a reference ground.
Always turn off the power before making any wiring changes to prevent electric shock or damage to the inverter.
After completing the wiring, turn the power back on. The inverter should initialize and start operating according to the newly set parameters.
Check the inverter's display or indicators to verify that it has started correctly and is operating as expected.
Adjusting parameters and wiring an inverter are critical tasks that require careful attention to detail. Following the correct steps ensures that the inverter operates efficiently and safely. Whether for industrial applications, renewable energy systems, or other uses, understanding these procedures is key to maintaining optimal performance and reliability.
