Variable Frequency Drives (VFDs) have revolutionized the way industrial motors operate, offering precise control over motor speed and significant energy savings. Proper installation and maintenance are essential to ensure the optimal performance and longevity of VFDs. This article provides detailed insights into the installation and maintenance procedures for VFDs, covering important aspects such as location selection, wiring, cooling, inspections, and troubleshooting.
Variable Frequency Drives (VFDs) are electronic devices used to control the speed of AC motors by adjusting the frequency and voltage supplied to the motor. They find applications in various industries, including manufacturing, HVAC systems, pumps, fans, and conveyor belts. The ability to vary motor speed according to load requirements offers several benefits, such as energy efficiency, precise control, and reduced wear and tear on equipment.
Choose an appropriate location for installing the VFDs, considering factors such as ventilation, temperature, humidity, and accessibility for maintenance. Avoid placing VFDs in areas prone to excessive dust, moisture, or vibration, as these can adversely affect their performance and lifespan.

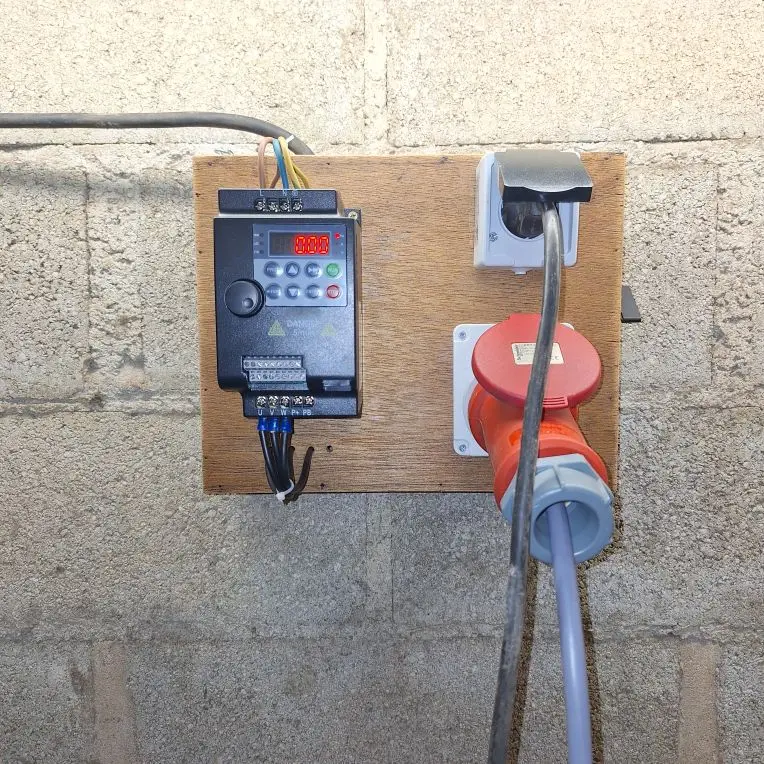

Ensure that VFDs are securely mounted on stable, vibration-resistant surfaces using appropriate mounting hardware. Mounting brackets or racks should be strong enough to support the weight of the drives and prevent excessive movement during operation.
Follow the manufacturer's guidelines for wiring and electrical connections to ensure proper installation and compliance with safety standards. Pay close attention to proper grounding, phase sequence, and cable sizing to prevent electrical faults, voltage drops, and electromagnetic interference.
Provide adequate cooling and ventilation to dissipate heat generated by the VFDs during operation. Ensure sufficient airflow around the drives by leaving adequate clearance between adjacent units and avoiding obstruction of cooling vents or fans.
Install VFDs in suitable enclosures or protective cabinets to shield them from environmental factors such as dust, moisture, and accidental contact. Enclosures should be properly sealed to prevent ingress of foreign particles or liquids and equipped with ventilation openings for heat dissipation.
Implement a regular maintenance schedule to inspect VFDs for signs of wear, loose connections, or abnormal operation. Visual inspections, electrical measurements, and performance tests can help identify potential issues before they escalate into major problems.
Keep VFDs clean by regularly removing dust, dirt, and debris from external surfaces, cooling vents, and internal components. Use compressed air or soft brushes to dislodge stubborn dirt and ensure unrestricted airflow for cooling.
Stay updated with the latest firmware releases and software patches provided by the VFD manufacturer. Firmware updates may include bug fixes, performance improvements, and new features that enhance the reliability and functionality of the drives.
Monitor the operating temperatures of VFDs using built-in sensors or external temperature probes. Keep temperatures within the recommended limits to prevent overheating, thermal shutdowns, or premature failure of critical components.
Replace worn-out or defective components such as cooling fans, capacitors, or power modules as per the manufacturer's recommendations. Use genuine replacement parts and follow proper procedures to ensure compatibility and reliability.
Learn to recognize common issues and symptoms associated with VFD operation, such as excessive heat, abnormal noise, erratic motor behavior, or error codes on the display panel. Investigate the root cause of the problem systematically to determine the appropriate corrective action.
Utilize diagnostic tools such as multimeters, oscilloscopes, or specialized VFD parameter analyzers to troubleshoot electrical faults, signal abnormalities, or communication errors. Refer to the VFD's user manual or technical documentation for guidance on interpreting fault codes and diagnostic indicators.
Follow structured troubleshooting procedures to isolate and resolve VFD issues effectively. Start by verifying the power supply, checking connections, and inspecting external devices and sensors. Use diagnostic software or online resources to access troubleshooting guides, forums, or technical support from the manufacturer.
Proper installation and maintenance practices are essential for maximizing the performance, reliability, and lifespan of Variable Frequency Drives (VFDs). By following the guidelines outlined in this article, users can ensure the safe and efficient operation of VFDs, minimize downtime, and prolong the service life of their industrial equipment. Regular inspections, cleaning, firmware updates, temperature monitoring, and timely component replacement are key elements of a comprehensive maintenance program for VFDs. Investing time and effort in proper installation and maintenance procedures will yield long-term benefits in terms of productivity, energy efficiency, and equipment reliability.
