Introduction to the Frequency Converter Panel Buttons: Hars SD320 Series

The Hars 320 model frequency converter is a sophisticated and versatile device used for controlling the speed and performance of electric motors. This guide will introduce you to the panel operation and explain how to set up terminal start on this frequency converter.

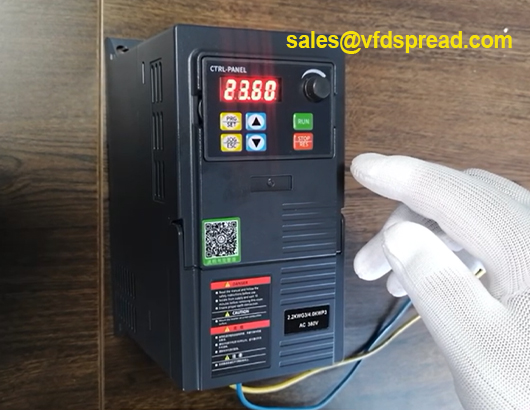

Overview of the Control Panel

The control panel of the Hars 320 model frequency converter is designed for ease of use and efficiency. At a glance, you will notice the following key components:

• Digital Display:

  The display shows various parameters and statuses. When the digits are flashing, it indicates that the converter is in standby mode.




• Knob (Top Right):

  This knob is multifunctional. It is primarily used for adjusting the frequency and speed of the motor.




• Green Button:

  This button is used to start the motor.




• Red Button:

  This button is used to stop the motor.




• PRG Button:

  The "PRG" button is used to enter the settings page, allowing you to configure various parameters.







Setting Up Terminal Start

To set up terminal start on the Hars 320 model frequency converter, follow these steps:

1. Enter Standby Mode:

   When you first power on the converter, you will notice the digits on the display are flashing, indicating that the device is in standby mode.




2. Adjust Frequency and Speed:

   Use the knob on the top right to adjust the frequency and speed according to your requirements.




3. Starting the Motor:

   Press the green button to start the motor. The motor will begin to run at the frequency you have set.




4. Stopping the Motor:

   Press the red button to stop the motor. The display will return to flashing digits, indicating that it is back in standby mode.




Detailed Setup Process

To set the terminal start function, you need to adjust specific parameters within the settings menu. Here's how you can do it:

1. Entering the Settings Page:

   Press the "PRG" button. The display will show "DO," indicating that you have entered the settings mode.




2. Navigating the Menu:

   Use the "up key" to navigate through the menu until you find "F0."




3. Setting Parameters:

   Press "PRG" again to enter the settings page for "F0." Use the "up key" to change the parameter value to 2.




4. Adjusting Flashing Position:

   The green button allows you to adjust the flashing position on the display. The position that is flashing is the one where you can set parameters. For now, you do not need to adjust this.




5. Confirming Settings:

   Press "PRG" to confirm your settings. Use the "up key" to set the value to 1 and press "PRG" again to confirm.




6. Returning to Main Menu:

   The display will show "F0.03," indicating that you have successfully set "F0.02" to 1, completing the terminal start setup. Press the "GOG" button to return to the main menu.







Practical Application and Benefits

The Hars 320 model frequency converter is designed to provide users with a reliable and efficient way to control motor speed. By following the setup process, users can customize the converter's performance to meet specific needs, ensuring optimal operation in various applications.

1. Ease of Use:

   The intuitive design of the control panel makes it easy for users to adjust settings and control the motor without needing extensive technical knowledge.




2. Flexibility:

   The ability to set and adjust parameters allows users to tailor the converter's performance to their specific requirements, whether it's for industrial machinery, HVAC systems, or other applications.




3. Efficiency:

   By using the frequency converter, users can optimize motor performance, leading to energy savings and reduced operational costs.




Advanced Features and Customization

The Hars 320 model frequency converter offers several advanced features that enhance its functionality and usability:

1. Programmable Functions:

   Users can program various functions to automate processes and improve efficiency. This includes setting up different operating modes, such as constant speed or variable speed, based on the application's needs.




2. Safety Features:

   The converter includes safety features such as overload protection, over-voltage protection, and short-circuit protection, ensuring safe and reliable operation.




3. Diagnostics and Monitoring:

   The digital display provides real-time information on the converter's status, allowing users to monitor performance and diagnose issues quickly. This helps in maintaining the system's efficiency and preventing downtime.







Common Applications

The Hars 320 model frequency converter is widely used in various industries due to its versatility and reliability. Some common applications include:

1. Industrial Machinery:

   The converter is used to control the speed and torque of industrial machines, improving productivity and efficiency.




2. HVAC Systems:

   In heating, ventilation, and air conditioning systems, the converter helps regulate the speed of fans and pumps, optimizing energy consumption.




3. Renewable Energy Systems:

   The converter is used in renewable energy systems to control the speed of wind turbines and solar panel tracking systems, maximizing energy generation.




Troubleshooting and Maintenance

Proper maintenance and troubleshooting are essential for ensuring the longevity and performance of the frequency converter. Here are some tips:

1. Regular Inspections:

   Conduct regular inspections to check for signs of wear and tear, such as loose connections or damaged components.




2. Cleaning:

   Keep the converter clean and free from dust and debris, which can affect its performance.




3. Firmware Updates:

   Ensure that the firmware is up to date to benefit from the latest features and improvements.




4. Technical Support:

   If you encounter issues that cannot be resolved through basic troubleshooting, contact the manufacturer's technical support for assistance.




Conclusion

The Hars 320 model frequency converter is a powerful and flexible tool for controlling motor speed and optimizing performance in various applications. By understanding the panel operation and following the setup instructions, users can fully leverage the converter's capabilities to achieve efficient and reliable motor control. Regular maintenance and adherence to safety guidelines will ensure long-lasting performance and maximize the benefits of this advanced frequency converter.
