Frequency converters, also known as Variable Frequency Drives (VFDs), are essential components in modern industrial and commercial settings. They play a crucial role in controlling the speed and torque of electric motors, which in turn enhances energy efficiency, process control, and system reliability. This article aims to provide a comprehensive understanding of frequency converters, including their working principles, types, benefits, applications, and considerations for selecting and maintaining these devices.

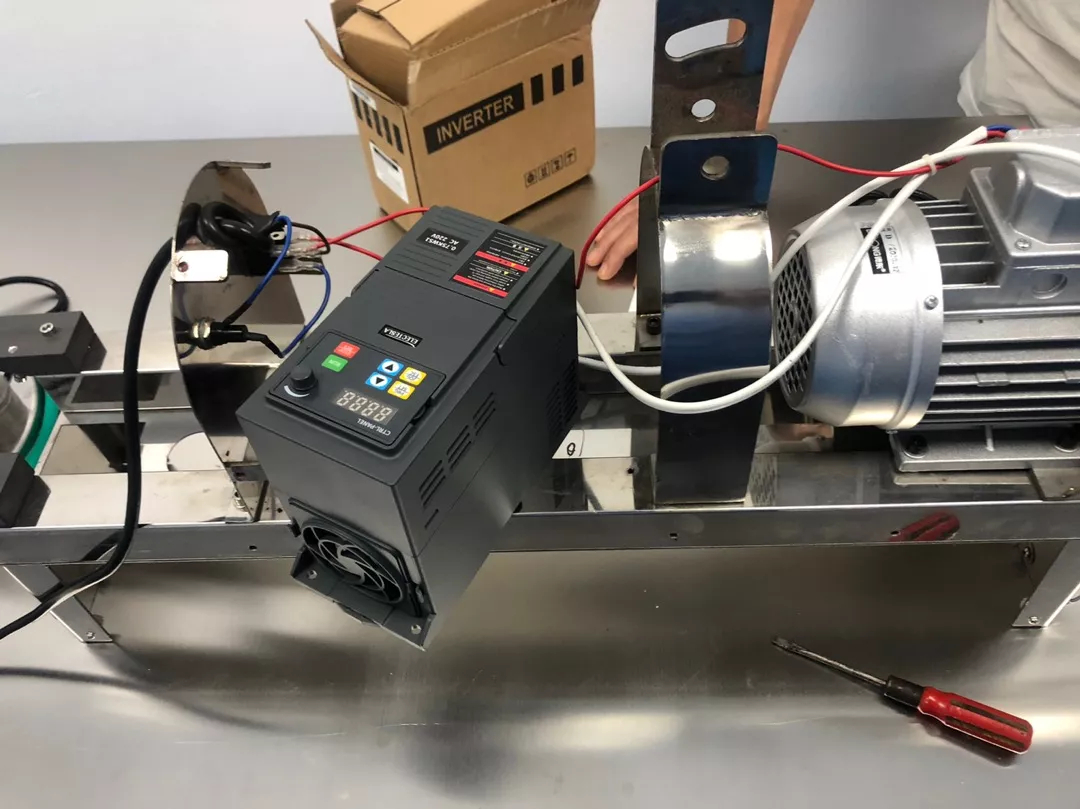

A frequency converter is an electronic device that converts the fixed frequency and voltage of an input power source into a variable frequency and voltage output. This conversion allows for precise control of the speed and torque of electric motors, enabling them to operate more efficiently and adapt to varying load conditions. Frequency converters are widely used in industrial processes, HVAC systems, renewable energy installations, and other applications where motor control is critical.
The fundamental operation of a frequency converter involves three main stages: rectification, filtering, and inversion.
The input AC power, typically at a fixed frequency (e.g., 50 Hz or 60 Hz), is converted into DC power using a rectifier. This process involves the use of diodes or thyristors to rectify the alternating current into direct current.
The DC power is then smoothed and filtered to remove any ripples or fluctuations. This stage ensures a stable DC voltage, which is essential for the next stage of conversion.
The filtered DC power is converted back into AC power with a variable frequency using an inverter. The inverter employs semiconductor switches, such as IGBTs (Insulated Gate Bipolar Transistors), to generate a pulse-width modulated (PWM) AC output. By adjusting the switching frequency and duty cycle of the PWM signals, the frequency and voltage of the output AC power can be precisely controlled.
Frequency converters come in various types, each designed for specific applications and performance requirements. The most common types include:
VSI frequency converters are the most widely used type and are known for their robustness and simplicity. They convert DC voltage into AC voltage with a variable frequency and are suitable for general-purpose motor control applications.
CSI frequency converters convert DC current into AC current with a variable frequency. They are typically used in applications where high starting torque and dynamic braking are required, such as in hoisting and traction systems.
DTC frequency converters offer precise control of motor torque and speed without relying on complex vector calculations. They are ideal for applications that demand high dynamic performance and fast response times, such as in robotics and CNC machines.
Matrix converters are a newer type of frequency converter that directly convert AC power at one frequency to AC power at another frequency without intermediate DC conversion. They are compact and efficient but are less common due to their complexity and cost.
The adoption of frequency converters in various applications offers numerous benefits, including:
By adjusting motor speed to match the load requirements, frequency converters significantly reduce energy consumption compared to fixed-speed motor operation. This leads to lower energy costs and reduced carbon emissions.
Frequency converters enable precise control of motor speed and torque, allowing for better process regulation and optimization. This is particularly important in industries where consistent product quality and process stability are critical.
Soft starting and stopping of motors, facilitated by frequency converters, reduce mechanical stress and wear on equipment components. This leads to longer equipment lifespan and reduced maintenance costs.
Frequency converters offer various protection features, such as overload protection, overvoltage protection, and fault diagnostics. These features enhance the safety and reliability of motor-driven systems.
Frequency converters can be easily programmed and configured to meet specific application requirements. This flexibility allows for quick adaptation to changing process conditions and operational needs.
Frequency converters are used in a wide range of applications across various industries. Some of the key applications include:
Frequency converters are integral to automated manufacturing processes, where precise control of motor speed and torque is essential for tasks such as conveyor belt operation, material handling, and robotic motion control.
In heating, ventilation, and air conditioning (HVAC) systems, frequency converters regulate the speed of fans, pumps, and compressors to maintain optimal indoor climate conditions while minimizing energy consumption.
Frequency converters control the speed of pumps and blowers in water and wastewater treatment plants, ensuring efficient operation and reducing energy costs.
In renewable energy systems, such as wind turbines and solar power plants, frequency converters are used to match the variable frequency output of renewable energy sources with the grid frequency, enabling efficient power conversion and grid integration.
In the mining industry, frequency converters are used to control the speed of conveyors, crushers, and grinding mills, enhancing operational efficiency and reducing energy consumption.
Frequency converters are used in electric vehicles, railways, and marine propulsion systems to control motor speed and torque, providing smooth and efficient operation.
Selecting the right frequency converter for a specific application involves evaluating several key factors:
Ensure that the frequency converter is compatible with the motor type (e.g., induction, synchronous, permanent magnet) and can provide the required voltage, current, and control features.
Match the frequency converter's power rating with the motor's power requirements. Consider factors such as voltage, current, and power factor to ensure proper sizing.
Determine the required speed control range and accuracy for the application. Choose a frequency converter that can provide the necessary frequency range and precise speed regulation.
Evaluate the operating environment and select a frequency converter with appropriate protection features (e.g., IP rating) to withstand conditions such as temperature, humidity, dust, and vibration.
Consider any application-specific requirements, such as torque control, dynamic braking, regenerative braking, and communication interfaces for integration with control systems.
Ensure that the frequency converter complies with relevant industry standards and certifications, such as UL, CE, and IEC, to meet safety and performance requirements.
Proper installation and maintenance are crucial for the reliable operation and longevity of frequency converters. Key practices include:
Follow manufacturer guidelines and industry standards for wiring, grounding, and mounting.
Ensure adequate ventilation and cooling to prevent overheating.
Use appropriate protective devices, such as fuses and circuit breakers, to safeguard the frequency converter and connected equipment.
Configure the frequency converter's parameters, such as motor data, speed control settings, and protection features, according to the application requirements.
Perform initial tests to verify correct operation and performance.
Conduct regular inspections to check for signs of wear, damage, and overheating.
Clean cooling fans, heat sinks, and filters to maintain efficient heat dissipation.
Monitor system parameters and diagnostics to identify and address potential issues early.
Use diagnostic tools and built-in fault codes to identify and resolve issues.
Consult the manufacturer’s documentation and technical support for guidance on troubleshooting specific problems.
The field of frequency converters is continuously evolving, driven by advancements in technology and increasing demand for energy efficiency and automation. Some of the emerging trends and innovations include:
Modern frequency converters are being equipped with IoT capabilities, allowing for remote monitoring, predictive maintenance, and data-driven decision-making. This integration enhances operational efficiency and reduces downtime.
Newer frequency converter designs focus on maximizing energy efficiency through advanced control algorithms, regenerative braking, and energy recovery features. These innovations help reduce energy consumption and lower operating costs.
User-friendly interfaces, such as touchscreens and mobile apps, are being incorporated into frequency converters to simplify configuration, monitoring, and troubleshooting processes.
The trend towards more compact and modular frequency converter designs allows for easier installation, scalability, and maintenance, making them suitable for a wider range of applications.
Innovations in control techniques, such as sensorless vector control and direct torque control (DTC), provide more precise and responsive motor control, enhancing performance in demanding applications.
Frequency converters are indispensable tools for modern motor control, offering numerous benefits in terms of energy efficiency, process control, and system reliability. By understanding the working principles, types, applications, and key considerations for selecting and maintaining frequency converters, engineers and decision-makers can make informed choices that optimize the performance and efficiency of their systems. As technology continues to advance, frequency converters will play an increasingly vital role in driving innovation and sustainability across various industries.
