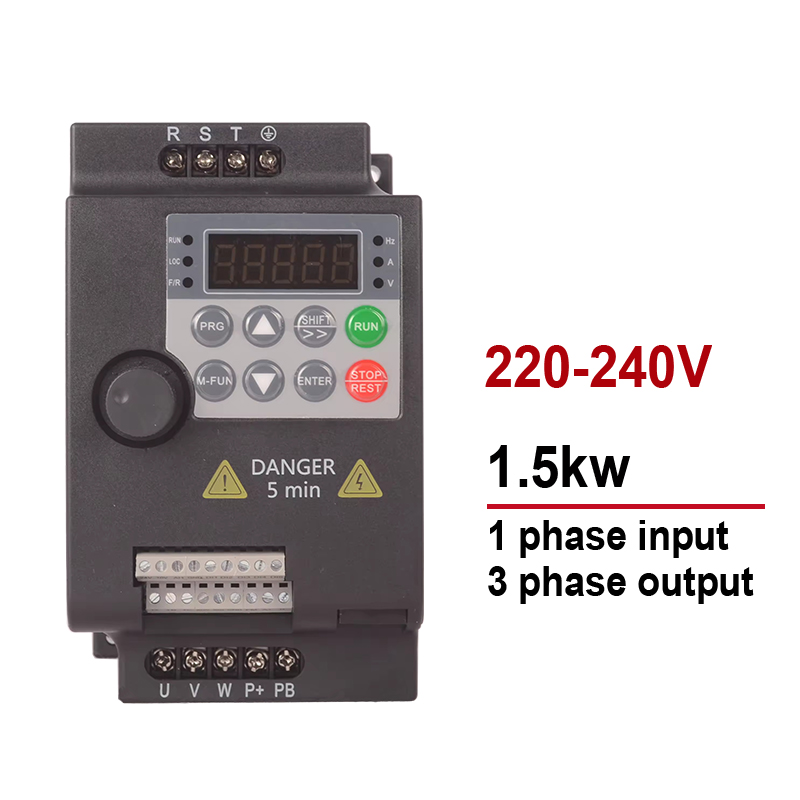

HS310-1.5S1-220V
Single phase 220V
Three phases 220V
1.5KW
50Hz/60Hz
V/F control, Open-loop vectro control
0.1% of the highest frequency
0.01Hz
The HS310 series variable frequency drive is a general-purpose inverter developed for various fields, including traditional agriculture, industry, and manufacturing. It is widely applicable in industries such as fans, pumps, printing and packaging, power materials, metallurgy, chemicals, and municipal fire protection. This series of frequency inverters features outstanding performance, rich functionalities, compact structure, simple operation, safety and reliability, and excellent adaptability to different environments.
| HS310 Series | Product Power | Input Voltage /Frequency | Output Voltage /Frequency | Output Current | Product Dimensions | Installation Dimensions |
| 0.75S1-220V | 0.75KW | single phase220V-240V 50Hz/60Hz | 3 phases0V-240V 0-500Hz | 4.0 A | 142*85*116 mm | 210*110*165mm |
| 1.5S1-220V | 1.5KW | 7.0 A | ||||
| 2.2S1-220V | 2.2KW | 9.6 A | ||||
| 0.75G3-380V | 0.75KW | 3 phases 380V-440V 50Hz/60Hz | 3 phases 0V-440V 0-500Hz | 2.1 A | 142*85*116 mm | 210*110*165mm |
| 1.5G3-380V | 1.5KW | 3.8 A | ||||
| 2.2G3-380V | 2.2KW | 5.1 A | ||||
| 4.0G3-380V | 4.0KW | 9.0 A | ||||
| 5.5G3-380V | 5.5KW | 13.0 A | 180*95*120 mm | 220*170*200mm |
| Item | Technical Specification | ||
| Output | Output voltage | 0V to input voltage | |
| Output Frequency | Low frequency mode: 0.00Hz~320.00Hz High frequency mode: 0.0Hz ~ 3200.0Hz | ||
| Carrier frequency | 0.8kHz to 16.0kHz (adjustable based on the load) | ||
| Overload capacity | 150%/1min | ||
| Input | Rated voltage/frequency | Single-phase: 220V, 50/60Hz Three-phase: 380V, 50/60Hz | |
| Voltage fluctuation range | Three-phase: 380V±15%. Allowable range: AC 323V～437V Single-phase: 220V±15%. Allowable range: AC 187V～253V | ||
| Frequency fluctuation range | ±0.5% | ||
| Control performance | et frequency resolution | Digital setting | 0.01Hz |
| Analog setting | Maximum frequency × 0.025% | ||
| Control mode | V/F control, sensorless vector control (SVC) | ||
| Starting torque | SVC | 0.25Hz/150% rated torque | |
| Speed control range | SVC | 1：200 | |
| Steady-state velocity accuracy SVC | SVC | Maximum speed ± 0.5% | |
| Torque lift | Torque lift 0.0% to 30.0% | ||
| V/F curve | Linear, multi-point, V/F complete separation and V/F semi separation | ||
| Cycle-by-cycle current limit | Fast response and normal operation in the V/F mode | ||
| Acceleration and deceleration curve | Linear or S-curve acceleration and deceleration; 4 kinds of acceleration and deceleration time, 0.1s to 6,500.0s | ||
| Automatic voltage regulation | Automatically maintain the constant output voltage in case of changes in grid voltage | ||
| DC braking | DC braking frequency: 0.00 Hz ~ Maximum frequency DC braking current: 0.0%~100.0% DC braking time: 0.0s~100.0s | ||
| Jog control | Jog frequency range: 0.00 Hz ~ Maximum frequency Jog acceleration and deceleration time: 0.1s~6500.0s | ||
| PLC and multi-speed | Built-in PLC function, supporting 16 speeds at most | ||
| Overvoltage/overcurrent stall control | Automatic limit of running current and voltage to prevent frequent tripping | ||
| Torque limit and control | Automatic limit of torque current, for torque control in vector control mode | ||
| Control input | Running command | Operation panel, control terminal and serial communication setting, for switching of multiple modes | |
| Primary frequency command | Digital setting, analog voltage setting, analog current setting, pulse setting and communication setting, for switching of multiple modes | ||
| Auxiliary frequency command | Combined with the primary frequency for fine tuning and synthesis of frequency | ||
| Output signal | Input terminal | Keyboard potentiometer input, 0-5V | |
| 5 programmable input terminals, with one supporting high speed pulse input up to 50 KHZ | |||
| One AI terminal supporting 0-10 V voltage input | |||
| Output terminal | One high speed pulse output terminal (or programmable open | ||
| One programmable relay output | |||
| Two AO outputs, one supporting 0-10V voltage output and the other supporting 0-20mA or 4-20mA current output | |||
| Serial communication port | RS-485 port | ||
| Protection function | Overvoltage, undervoltage, overcurrent, current limiting, overload, overheat, electronic thermal overload relay, overvoltage stall, data protection, etc. | ||
| Display | 5-digit digital display (LED) and status indicator | Parameter setting: Display the parameter number and value | Function code, data, status |
| Running display: running frequency, current, etc. | |||
| Fault display: fault code | |||
Company Profile
We were founded in 2008, a high-tech enterprise specializing in the r&d, production, sales and technical services of industrial variable frequency converters. Currently, there are more than 200 employees, including 2 doctor and more than 10 master . More than 50% of them have professional inverter technology, and we have strong product r&d and technical support capabilities. As a high-tech enterprise supported by the government, Hars electric enjoys many honors such as government subsidies and factory provision. The company has obtained a number of invention patents, utility model patents and product appearance patents, the product passed the ISO9001:2010 quality system certification. Hars electric independently developed a series of products, powerful function, flexible control, excellent performance, can meet all kinds of mechanical support, system integration and industrial application needs, in cement, paper, machine tools, textile, metallurgy, lifting, oil, plastics, chemical, municipal and other industries have been widely used. Spread electric has 1 r&d center, 2 production plants, 10 offices and more than 500 dealers. lts products are also exported to the Middle East, Africa and southeast Asia. The company has a professional pre-sales, sales, after-sales technical service team, to provide professional services for custom-ers throughout the process. Spread electric to "win customers praise as the only goal",as always adhering to the" service delivery value, quality casting brilliant "faith, commit-ted to the development of inverter drive field, create value for customers, creating opportunities for staff ,take responsibility for society, to achieve the harmonious and common development between the company and the society, employees and customers.
Q1. Where is your factory and Company?
A: We are based in Anhui Province, China, start from 2017,sell to Domestic Market(75.00%),Eastern Asia(10.00%),Southeast Asia(5.00%),Africa(5.00%),Mid East(5.00%).
A: We has obtained ISO9001:2015 quality management system certification and EU CE certification.Always a pre-production VFD sample before mass production; Always final Inspection before shipment.
A: We are exper manufacturer for industrial inverters for over 15 years.We specialize in keeping lead times low and providing high stability of the frequency converters. It has been honored with awards such as the National Innovation Fund, High-tech Research Subsidy, Product Innovation Award, and Most Valuable Investment Award. With continuous research and development efforts, our products have evolved into three major series and over ten specialized models, earning five invention patents and more than thirty utility model patents.
A : Yes, we accept OEM and ODM with your autherization.
A : 1pc for test order is also accepted,only customized products will ask for MOQ.
A: Please send us your machine details, we will provide you most suitable model type.
A: We accept T/T, L/C, D/A, D/P, WESTERN UNION, PAYPAL, CASH, etc.
A: For 2000pcs inverter, it usually needs one week to finish.
A: Below 75KW, it's carton package; 75kW and above, it's wooden package.
A: All orders are completed via email,fax and online message.Please feel free contact with us.Our staff will service for you.
