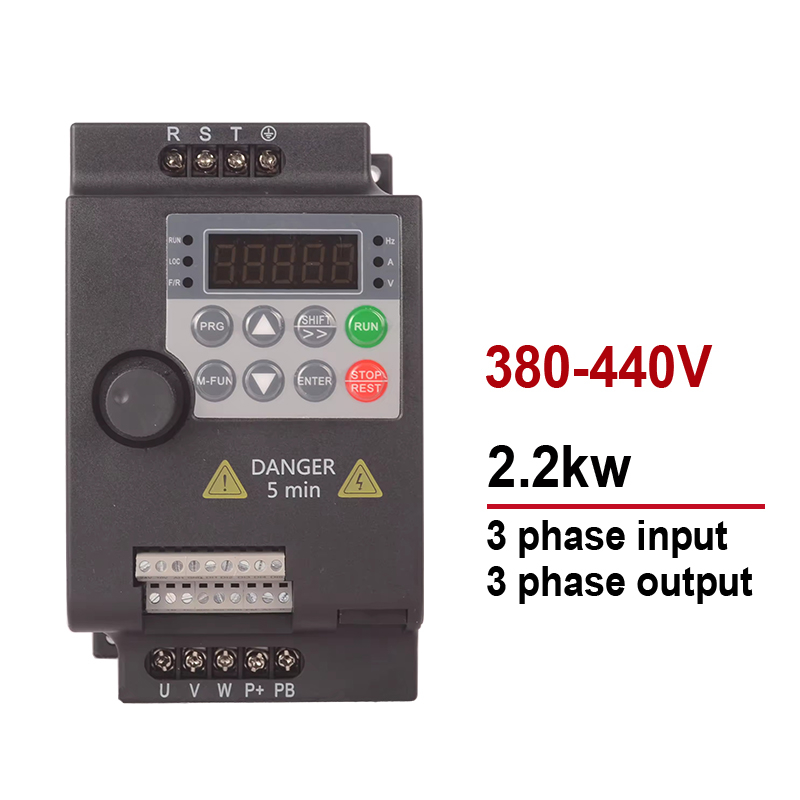

HS310-2.2G3-380V
Single phase 380V
Three phases 380V
2.2KW
50Hz/60Hz
V/F control, Open-loop vectro control
0.1% of the highest frequency
0.01Hz
The HS310 series variable frequency drive is a general-purpose inverter developed for various fields, including traditional agriculture, industry, and manufacturing. It is widely applicable in industries such as fans, pumps, printing and packaging, power materials, metallurgy, chemicals, and municipal fire protection. This series of frequency inverters features outstanding performance, rich functionalities, compact structure, simple operation, safety and reliability, and excellent adaptability to different environments.
| HS310 Series | Product Power | Input Voltage /Frequency | Output Voltage /Frequency | Output Current | Product Dimensions | Installation Dimensions |
| 0.75S1-220V | 0.75KW | single phase220V-240V 50Hz/60Hz | 3 phases0V-240V 0-500Hz | 4.0 A | 142*85*116 mm | 210*110*165mm |
| 1.5S1-220V | 1.5KW | 7.0 A | ||||
| 2.2S1-220V | 2.2KW | 9.6 A | ||||
| 0.75G3-380V | 0.75KW | 3 phases 380V-440V 50Hz/60Hz | 3 phases 0V-440V 0-500Hz | 2.1 A | 142*85*116 mm | 210*110*165mm |
| 1.5G3-380V | 1.5KW | 3.8 A | ||||
| 2.2G3-380V | 2.2KW | 5.1 A | ||||
| 4.0G3-380V | 4.0KW | 9.0 A | ||||
| 5.5G3-380V | 5.5KW | 13.0 A | 180*95*120 mm | 220*170*200mm |
| Item | Technical Specification | ||
| Output | Output voltage | 0V to input voltage | |
| Output Frequency | Low frequency mode: 0.00Hz~320.00Hz High frequency mode: 0.0Hz ~ 3200.0Hz | ||
| Carrier frequency | 0.8kHz to 16.0kHz (adjustable based on the load) | ||
| Overload capacity | 150%/1min | ||
| Input | Rated voltage/frequency | Single-phase: 220V, 50/60Hz Three-phase: 380V, 50/60Hz | |
| Voltage fluctuation range | Three-phase: 380V±15%. Allowable range: AC 323V～437V Single-phase: 220V±15%. Allowable range: AC 187V～253V | ||
| Frequency fluctuation range | ±0.5% | ||
| Control performance | et frequency resolution | Digital setting | 0.01Hz |
| Analog setting | Maximum frequency × 0.025% | ||
| Control mode | V/F control, sensorless vector control (SVC) | ||
| Starting torque | SVC | 0.25Hz/150% rated torque | |
| Speed control range | SVC | 1：200 | |
| Steady-state velocity accuracy SVC | SVC | Maximum speed ± 0.5% | |
| Torque lift | Torque lift 0.0% to 30.0% | ||
| V/F curve | Linear, multi-point, V/F complete separation and V/F semi separation | ||
| Cycle-by-cycle current limit | Fast response and normal operation in the V/F mode | ||
| Acceleration and deceleration curve | Linear or S-curve acceleration and deceleration; 4 kinds of acceleration and deceleration time, 0.1s to 6,500.0s | ||
| Automatic voltage regulation | Automatically maintain the constant output voltage in case of changes in grid voltage | ||
| DC braking | DC braking frequency: 0.00 Hz ~ Maximum frequency DC braking current: 0.0%~100.0% DC braking time: 0.0s~100.0s | ||
| Jog control | Jog frequency range: 0.00 Hz ~ Maximum frequency Jog acceleration and deceleration time: 0.1s~6500.0s | ||
| PLC and multi-speed | Built-in PLC function, supporting 16 speeds at most | ||
| Overvoltage/overcurrent stall control | Automatic limit of running current and voltage to prevent frequent tripping | ||
| Torque limit and control | Automatic limit of torque current, for torque control in vector control mode | ||
| Control input | Running command | Operation panel, control terminal and serial communication setting, for switching of multiple modes | |
| Primary frequency command | Digital setting, analog voltage setting, analog current setting, pulse setting and communication setting, for switching of multiple modes | ||
| Auxiliary frequency command | Combined with the primary frequency for fine tuning and synthesis of frequency | ||
| Output signal | Input terminal | Keyboard potentiometer input, 0-5V | |
| 5 programmable input terminals, with one supporting high speed pulse input up to 50 KHZ | |||
| One AI terminal supporting 0-10 V voltage input | |||
| Output terminal | One high speed pulse output terminal (or programmable open | ||
| One programmable relay output | |||
| Two AO outputs, one supporting 0-10V voltage output and the other supporting 0-20mA or 4-20mA current output | |||
| Serial communication port | RS-485 port | ||
| Protection function | Overvoltage, undervoltage, overcurrent, current limiting, overload, overheat, electronic thermal overload relay, overvoltage stall, data protection, etc. | ||
| Display | 5-digit digital display (LED) and status indicator | Parameter setting: Display the parameter number and value | Function code, data, status |
| Running display: running frequency, current, etc. | |||
| Fault display: fault code | |||
