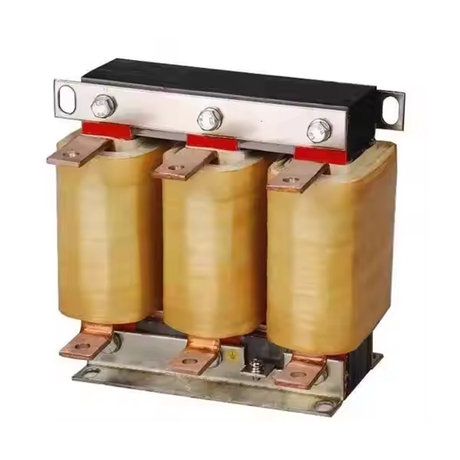

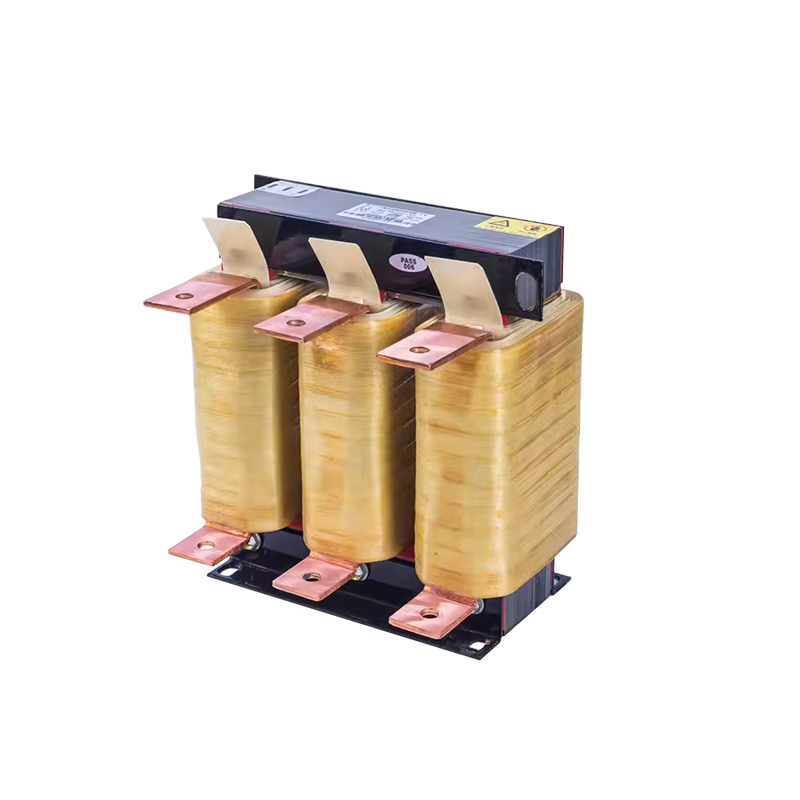

Reactor

Reactor



Learn More  ▶




Prower Resistor Unit

Prower Resistor Unit



Learn More  ▶




未标题-1

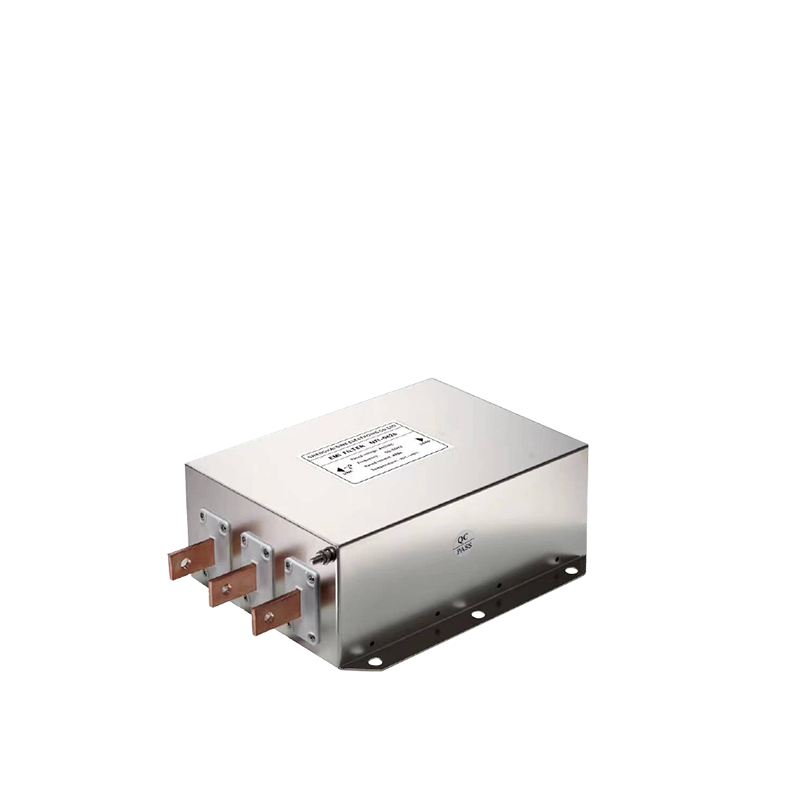

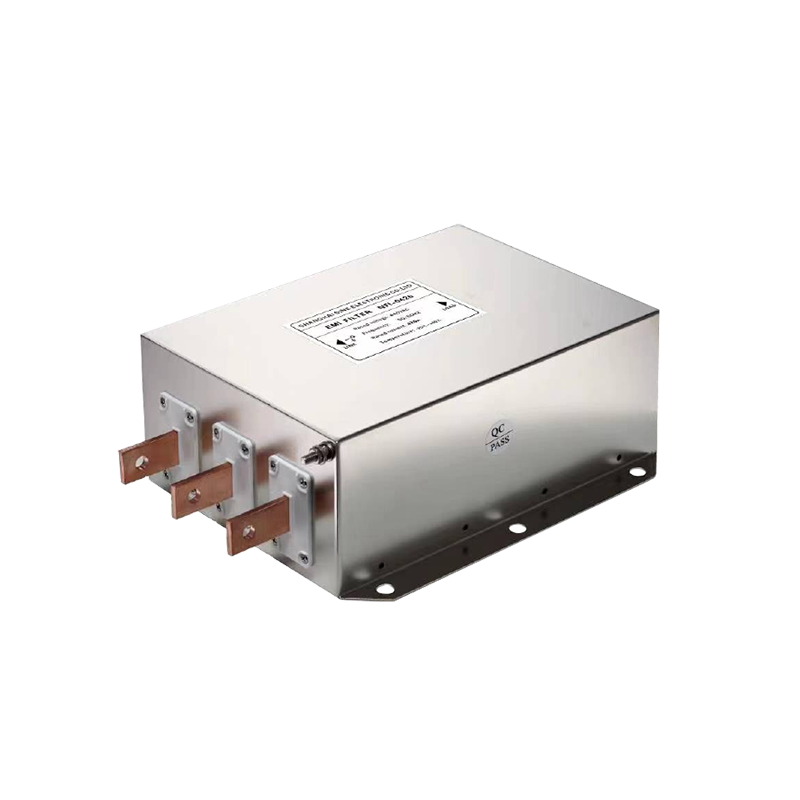

Filter



Learn More  ▶




DC Braking Unit

DC Braking Unit



Learn More  ▶




Braking Resistor Unit

Braking Resistor Unit



Learn More  ▶





Can't Find Ideal VFD Accessories For Your Industry?

We provide custom solutions to all our customers and offer professional advice that you can take advantage of.
line     VFD ACCESSORIES MANUFACTURER    line

Hars VFD Accessories Series

Braking Resistor Unit
More >>
DC Braking Unit
More >>
Filter
More >>
Prower Resistor Unit
More >>
Reactor
More >>
Wire Wound Resistor
More >>
line     BRAKING RESISTOR UNIT INTRODUCTION

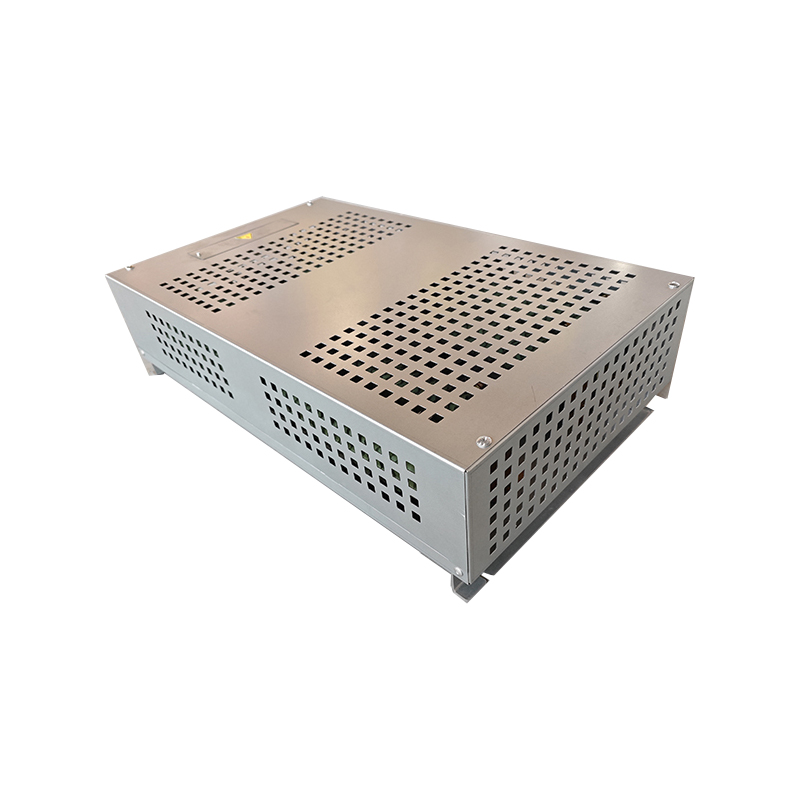

What Is Braking Resistor Unit?

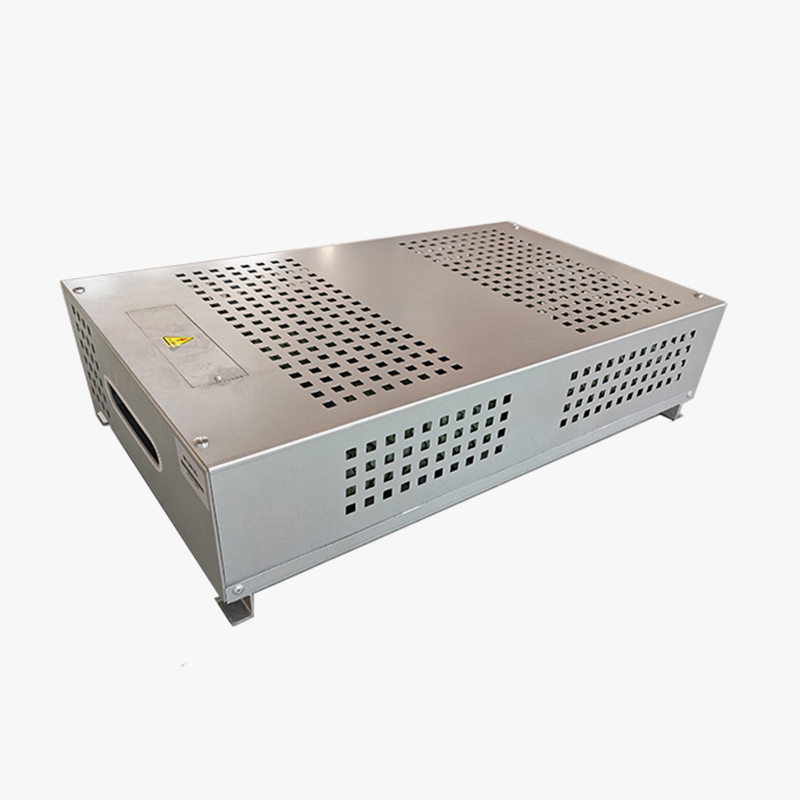

BRU series products are resistance boxes composed of brake resistors, suitable for high-power, high-current brakingequipment, experimental testing equipment, elevators, cranes and other inverter energy consumption braking loop
Power range:0.5KW-25KW
Voltage range: 0.5KV-3kV
Protection level:lP20-lP43
Vibration: 0.5 G

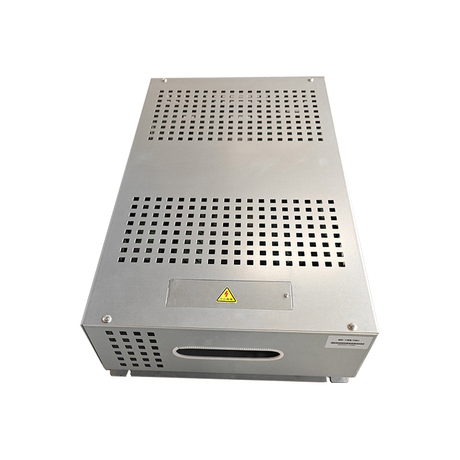

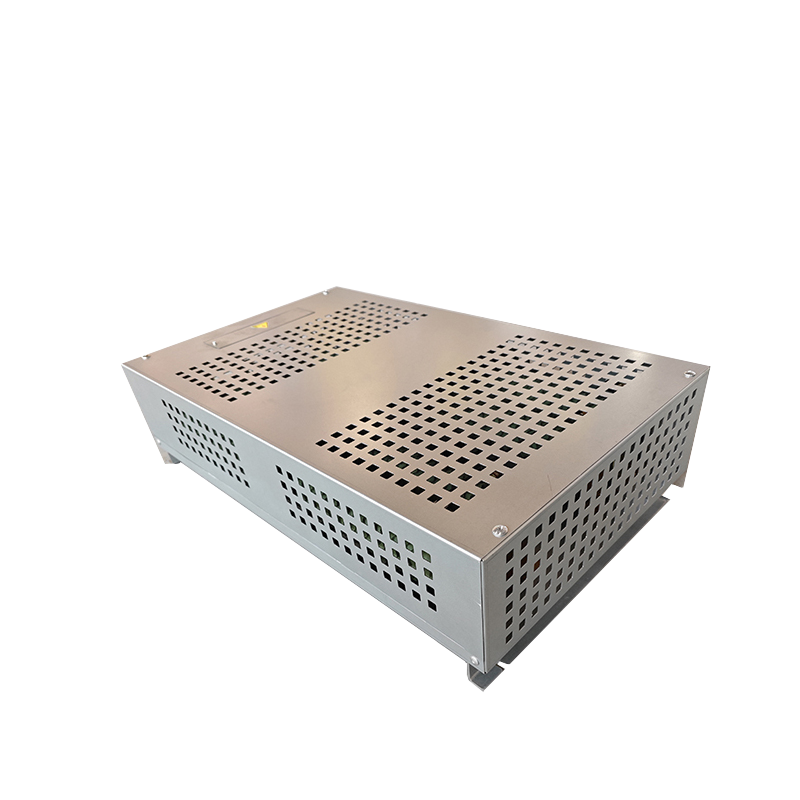

Braking-Resistor-Unit
line   BRAKING RESISTOR UNIT TECHNICAL DATA  line

Braking Resistor Unit Specification

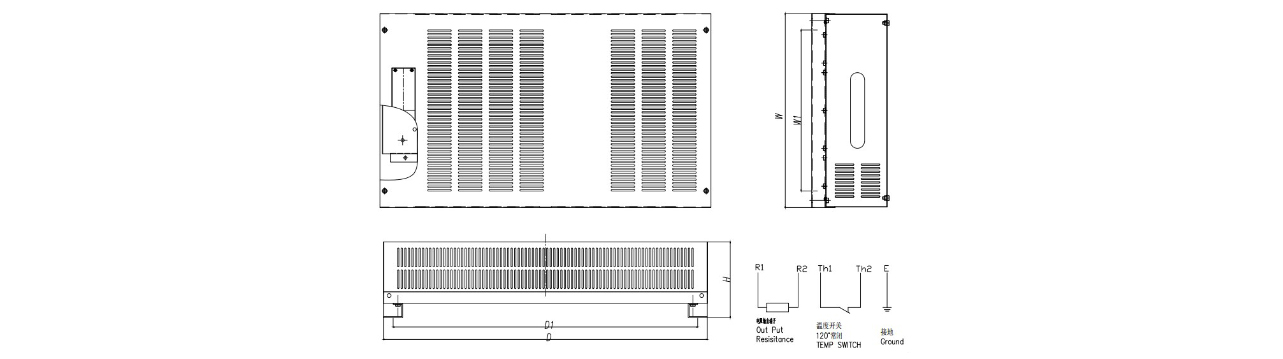

Braking-Resistor-Unit-size
Type Rated Power(KW) Dimension(mm)      Terminal Weight(kg)
W D H D1 W1
BRU 1 160 500 170 480 120 M6 5
1.5 160 500 170 480 120 M6 6
2 280 500 170 480 240 M6 8
3 280 500 170 480 240 M6 10
4.5 340 600 170 580 290 M6 12
6 340 600 170 580 290 M6 14
8 410 685 170 665 340 M6 16
10 410 685 170 665 340 M6 18
15 410 685 170 665 340 M6 22
20-25 410 685 340 665 340 M6 36

line     HOW TO CHOOSE   line

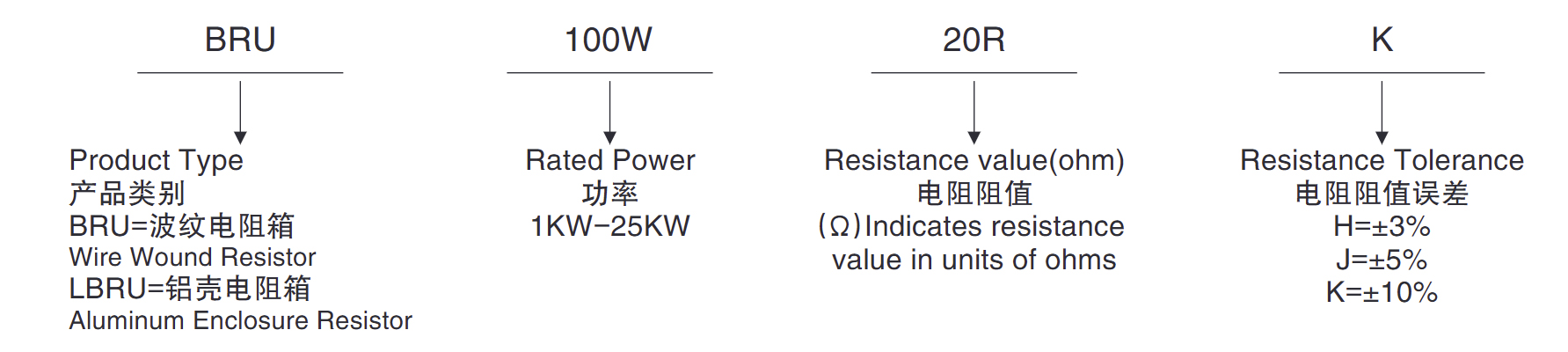

Braking Resistor Unit Selection Guide

Braking-Resistor-Unit-Selection-Guide
DC-Braking-Unit
line     DC BRAKING UNIT INTRODUCTION

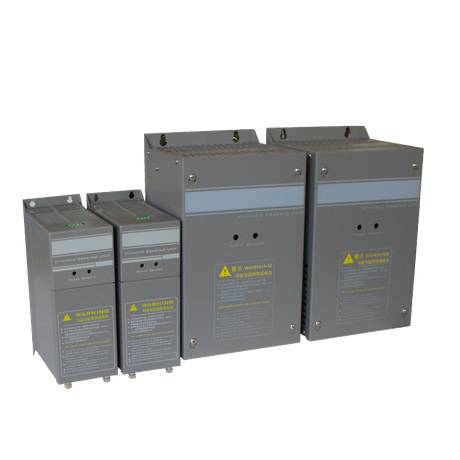

What Is DC Braking Unit?

The function of the braking unit is to divert into a brake resistor the re‐
generative energy produced in the process of deceleroting the motor,
converting that energy into heat. Regenerative energy flows form the
motor into the inverter DC bus,manifested as increased bus votge.

When the inverter slows down, the motor is in the state of power
generation because of the large inertia of the dragging system, and the mechanical energy quickly feeds back to the DC bus, making the DC bus voltage rise rapidly, thus endangering the safety of the converter. Therefore, the feedback energy must be consumed quickly, otherwise the converter will be overvoltage protection or fault. General inertia is large, or need to slow down sharply, braking occasions can use this braking unit. For example: centrifuge, elevator, crane, drawing machine, port machinery
and so on can be used.
line   DC BRAKING UNIT TECHNICAL DATA  line

DC Braking Unit Specification

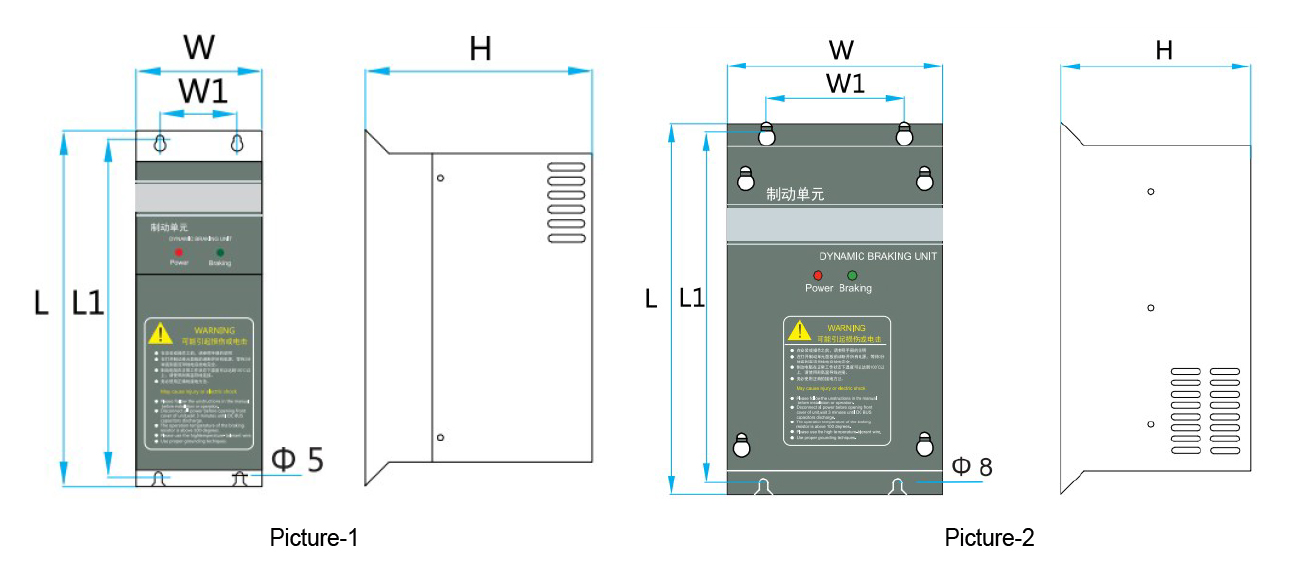

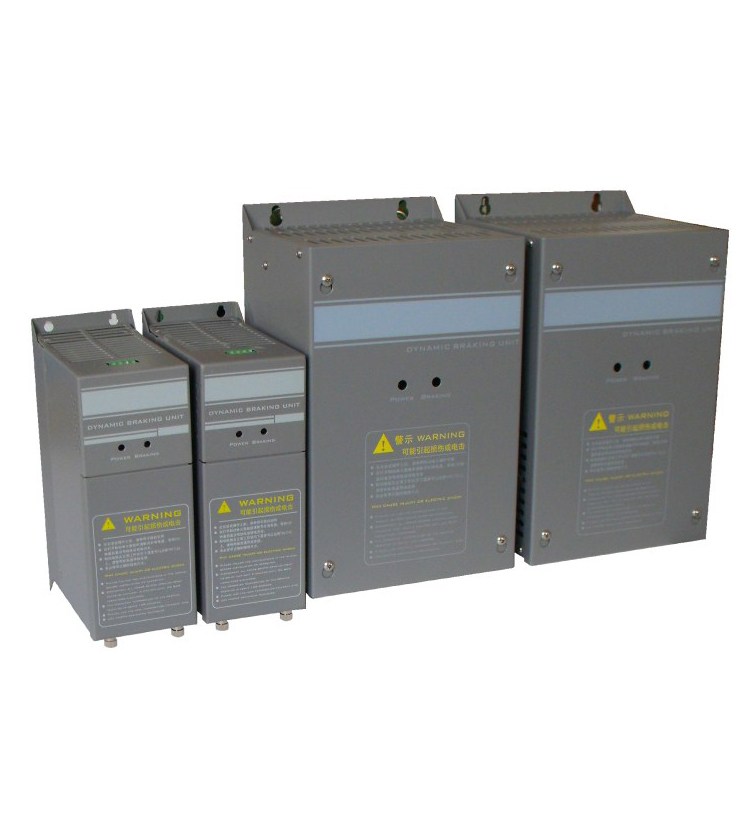

DC Braking Unit size
Product Type Rated
Cuurent(A)		 Crest
Current		 Minimum
Resistance		 Dimension(mm)      Terminal
L L1 W W1 H
CDBR-2015 15A 50A 10Ω 240 228 85 55 153 M4
CDBR-2022 25A 75A 6.8Ω 240 228 85 55 153 M4
CDBR-2030 30A 85A 5Ω 240 228 85 55 153 M4
CDBR-4030 15A 50A 20Ω 240 228 85 55 153 M4
CDBR-4045 25A 75A 13.6Ω 240 228 85 55 153 M4
CDBR-4055 30A 85A 12Ω 240 228 85 55 153 M4
CDBR-4075M 35A 100A 10Ω 240 228 85 55 153 M4
CDBR-4075 35A 100A 8Ω 320 304 187 120 163 M6
CDBR-4110 50A 150A 6.8Ω 320 304 187 120 163 M6
CDBR-4160 70A 200A 5Ω 320 304 187 120 163 M6
CDBR-4220 85A 300A 3.3Ω 320 304 187 120 163 M6
CDBR-4300 120A 400A 2.5Ω 320 304 223 160 193 M6

line     HOW TO CHOOSE   line

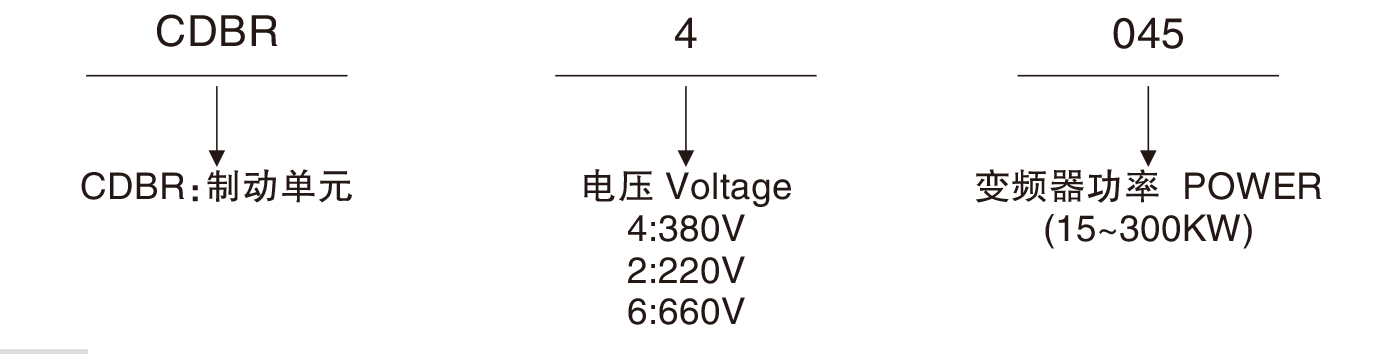

DC Braking Unit Selection Guide

DC-Braking-Unit-Selection-Guide
line     VFD FITERS MANUFACTURER    line

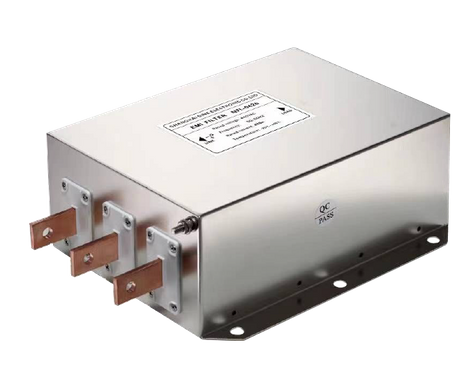

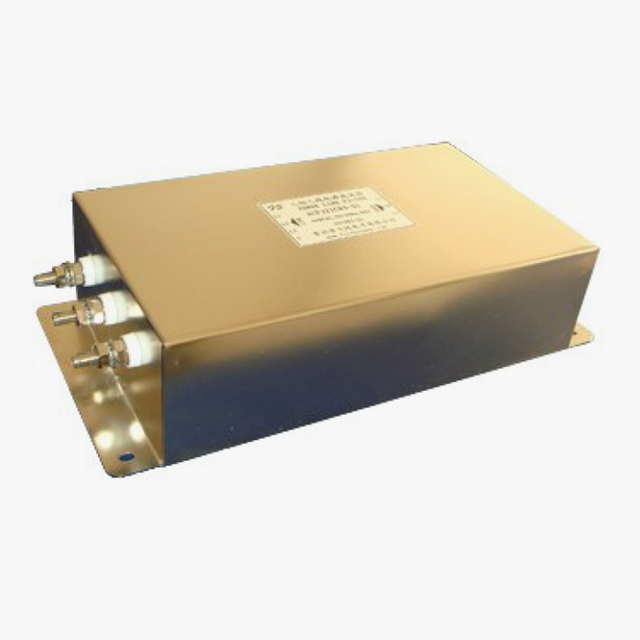

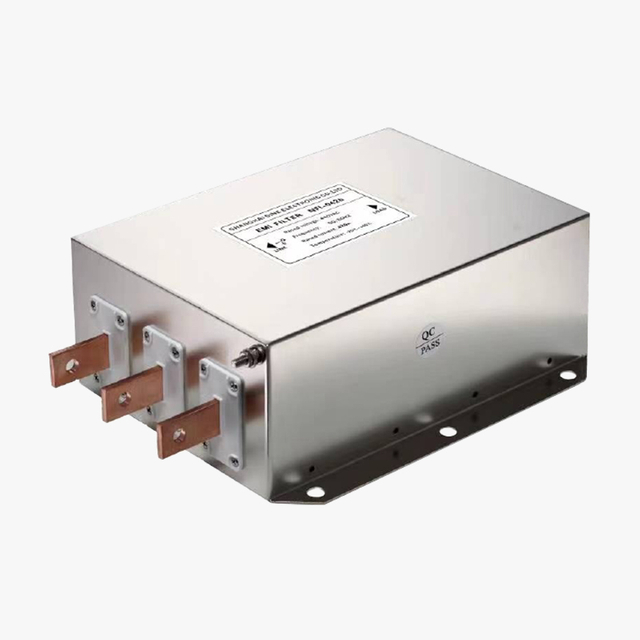

Hars Filters

Prower Resistor Unit
line     PROWER RESISTOR UNIT INTRODUCTION

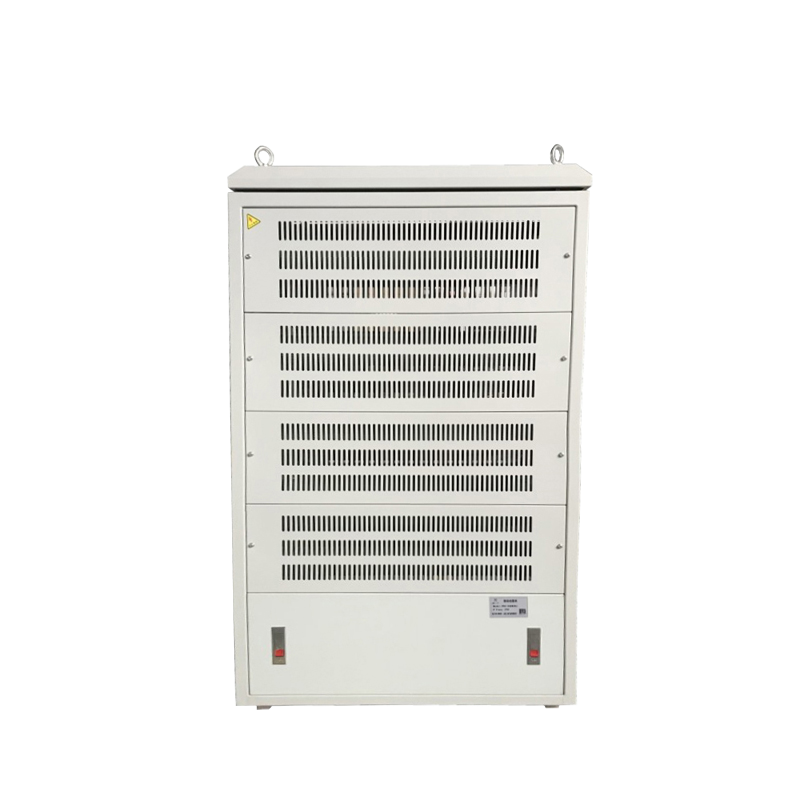

What Is Prower Resistor Unit?

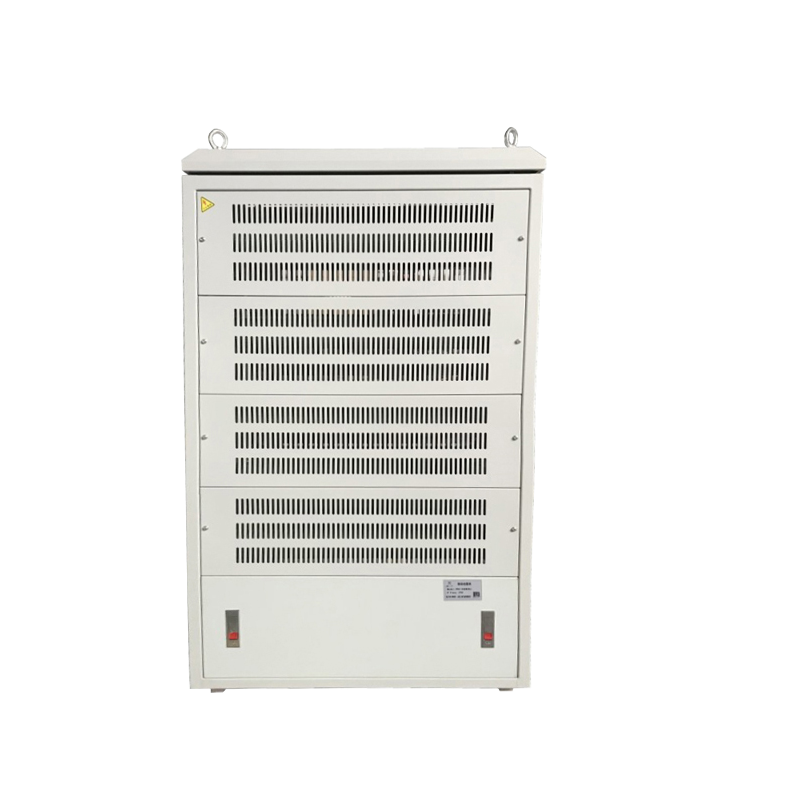

PRU series products are resistance cabinets composed of brake resistors, which are suitable for high-power and high-current braking equipment, experimental testing equipment, elevator, crane and other inverter energy consumption braking loop.
Power range: 20KW-1000KW
Voltage range: 0.5KV-3kV
Protection level: IP20-IP44
Vibration: 0.5 G
line   PROWER RESISTOR UNIT TECHNICAL DATA  line

Prower Resistor Unit Specification

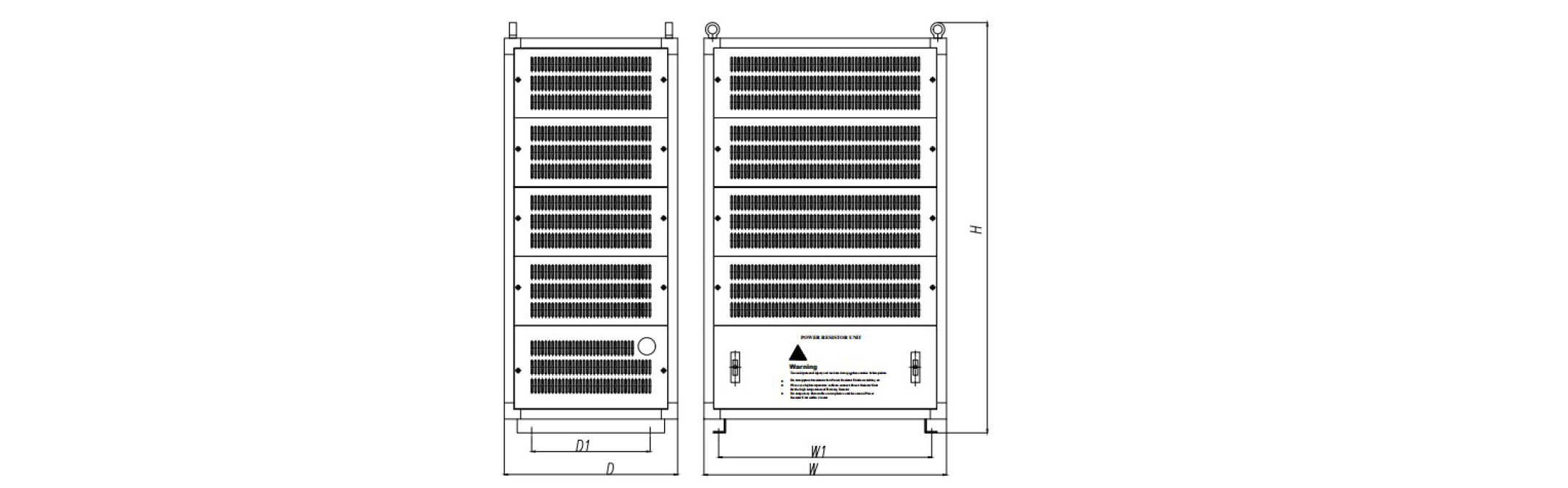

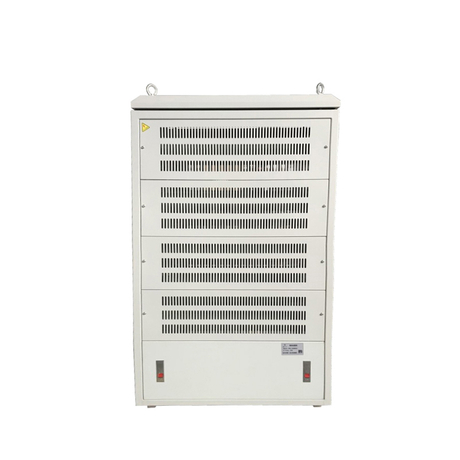

Prower-Resistor-Unit-size
Type Rated Power(KW) Dimension(mm)      Terminal Weight(kg) Combination
W D H1 H D1 W1
PRU 20 700 500 500 650 342 120 M6 60 8*2.5KW
30 700 500 700 850 342 120 M6 75 12*2.5KW
40 700 500 900 1050 342 240 M6 86 16*2.5KW
50 700 500 1100 1250 342 240 M6 100 20*2.5KW
60 700 500 1300 1450 342 290 M6 115 24*2.5KW
70 700 500 1500 1650 342 290 M6 130 28*2.5KW
80 700 500 1600 1750 342 340 M6 140 32*2.5KW
100 700 500 1800 1950 342 340 M6 165 40*2.5KW
120 700 500 2000 2150 342 340 M6 200 48*2.5KW
200 700 1000 2000 2150 842 340 M6 330 2*100KW

line     HOW TO CHOOSE   line

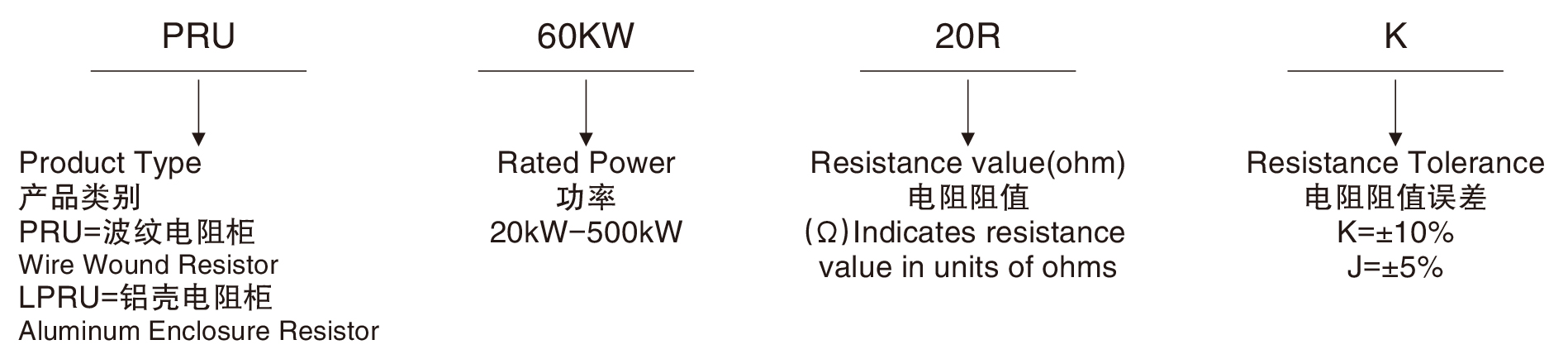

Prower Resistor Unit Selection Guide

Prower-Resistor-Unit-select-guide
line     VFD FITERS MANUFACTURER    line

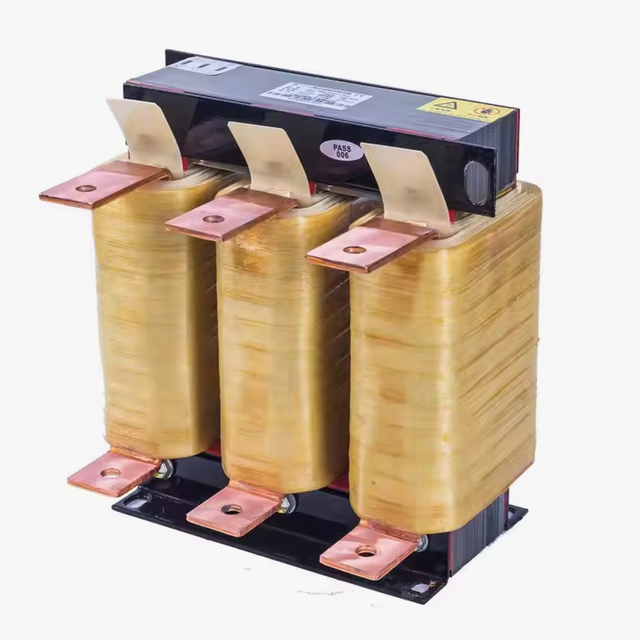

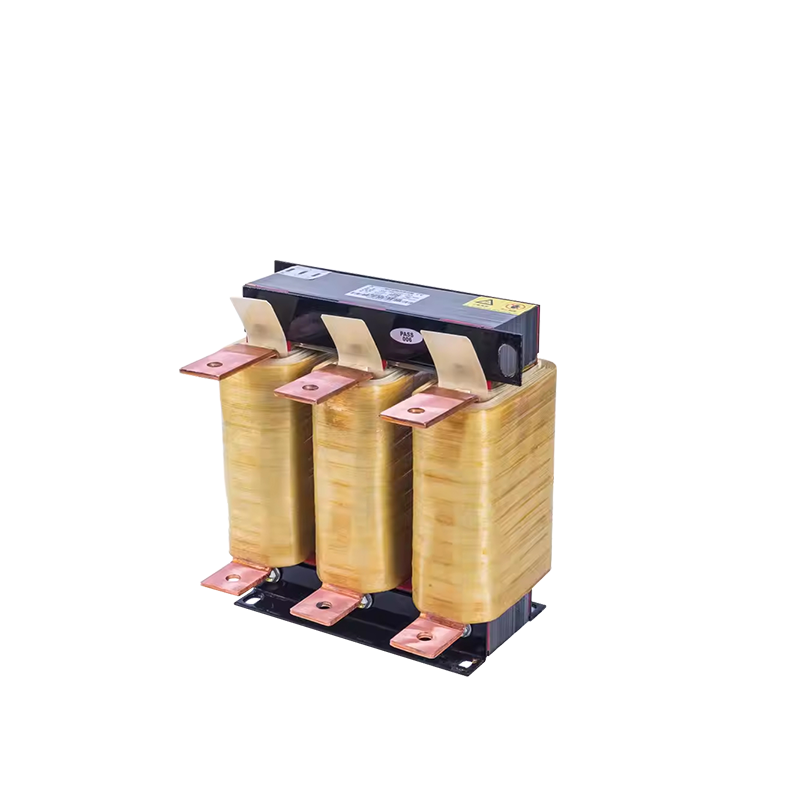

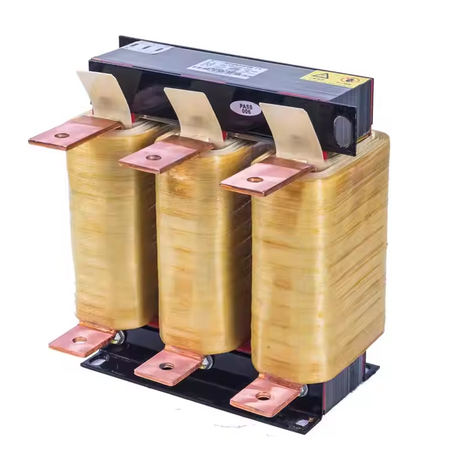

Hars Reactors

line     PROFESSIONAL WIRE WOUND RESISTOR SUPPLIER    line

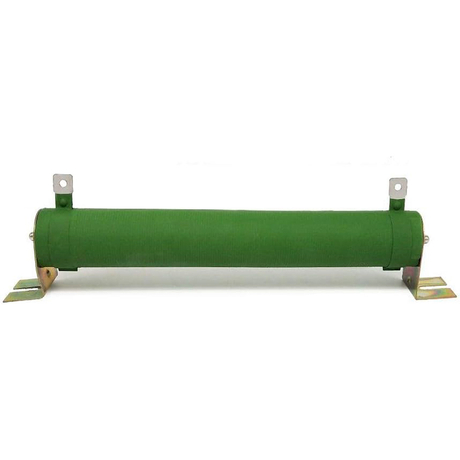

What Is A Wire Wound Resistor?

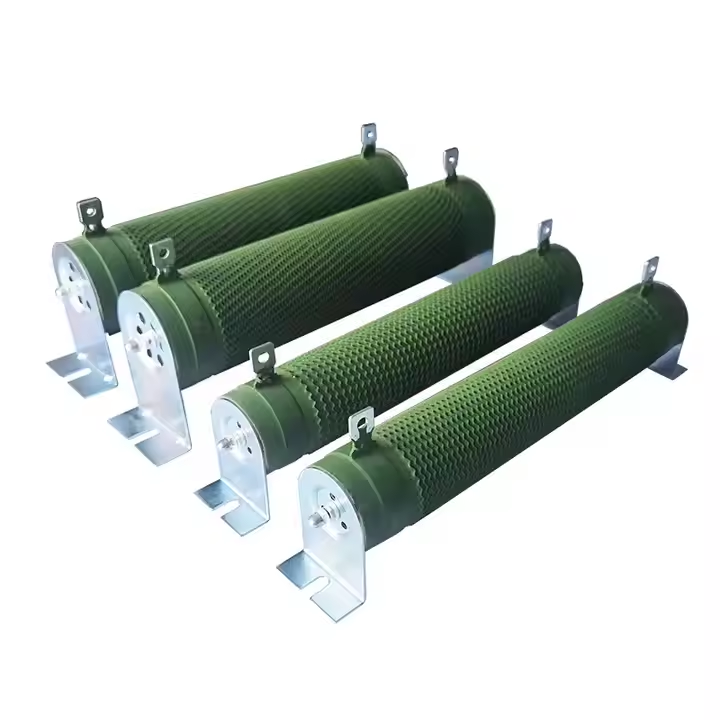

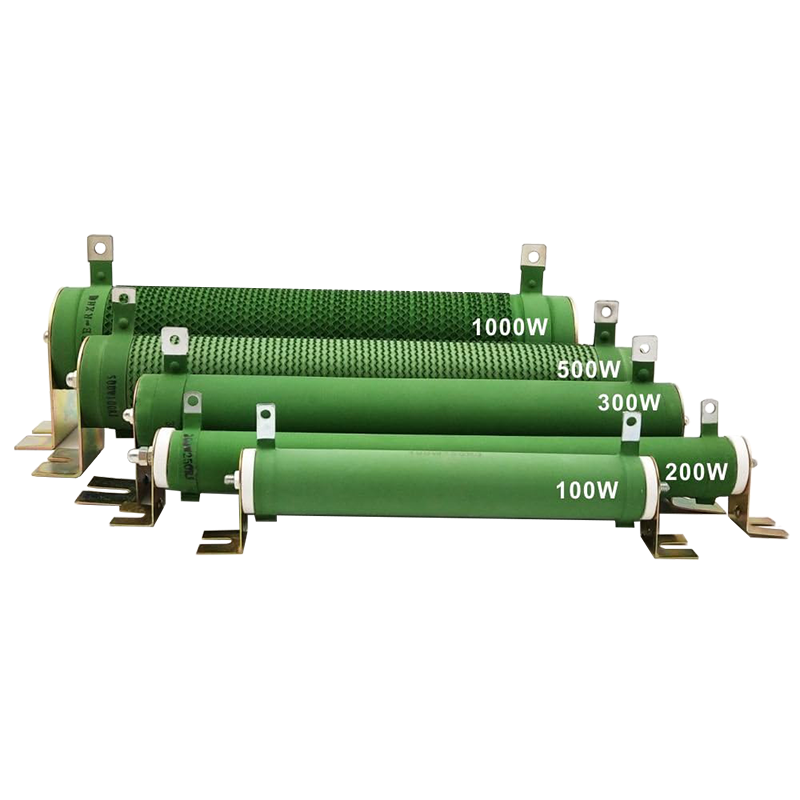

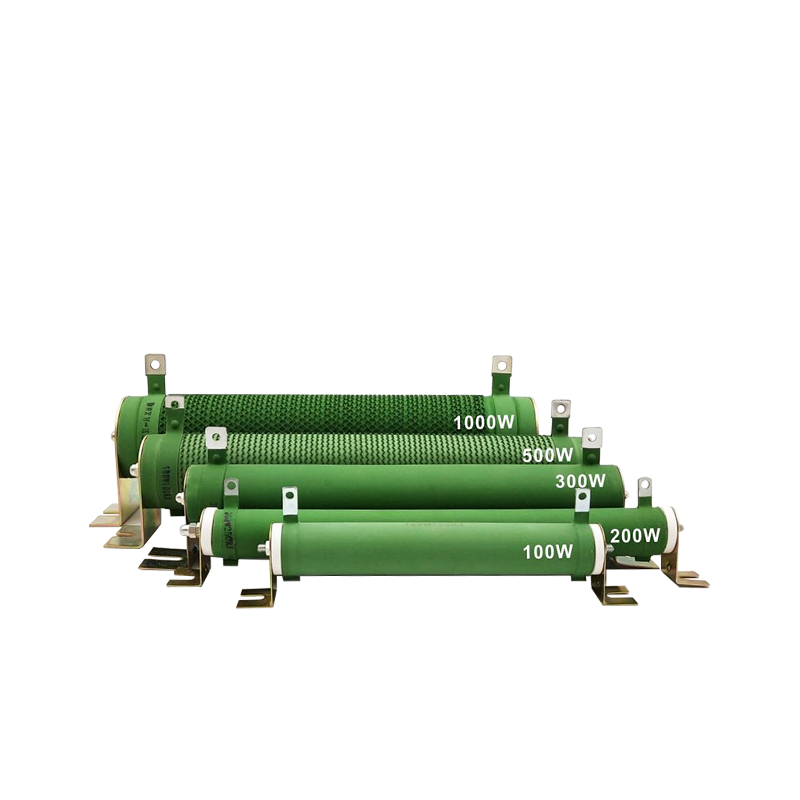

Wire Wound Resistor
RXHG coatings type winding resistor is a kind of power mode,the product use the wave resistance olloy in the form of side winding on the ceramin matrix.The surface coating insulation resistance to high temperature coating,is conducive to heat dissipation,and is equipped with a mounting bracket,a resistor has large power,strong overload capacity resistance,convenient installation and other feature.


Wire Wound Resistor Application


1.As a braking resistor to protect the inverters,servos,etc,from danmage by regenerative energy of the motor;
2.As a resistive load in power electronic load tests;
3.As a sampling resister,limiting resistor,starting resistor,or protective resistor in power electronic equipment.
line   WIRE WOUND RESISTOR TECHNICAL DATA  line

Wire Wound Resistor Specification

1.Resistance value and the change range:1Ω≤R±5%（J），1Ω＞R±10%（K）
2.Rated load:The maximum surface temperature,50~200W≤275℃，＞200W≤350℃
3.Short-time overload:No visible damage △R≤±（5%R+0.05Ω）10 times 5s
4.Insulation resistance:R≥100MΩ 1min DC 1000V
5.Withstanding voltage :No visible damge,no arcing breakdown △R≤±（0.1%R+0.05）AC 3000V 5S
6.Resistance-temperature characteristic:±260PPM/℃（less than 5Ωdon't test)
7.Terminial strength No looseness or mechanical damage 45N 30s
8.Resistance strength No visible damage 200N 30S
9.Withstanding vibration:No visible damage △R≤±（0.1%R+0.05Ω）f:5-200Hz a=1gX.Y.Z/2h
10.Heart resistance:In addition to the terminal no pbvious discoloration and damage,marked clearly 350℃ 2hours
11.Heat shock No visible mechanical damage,after 30minute rated overload
12.Wateriogging resistance:No visible mechanical damage,marked clearly △R≤±（5%R+0.05Ω）Insulation resistance≥
10MΩDC100 40℃ 95%RH 500hours
13.Durability(rated overload):No visible damage,marked clearly △R≤±（5%R+0.05Ω）load100%


Wire Wound Resistor Applicable Standards


GB/T5729-1994 Fixed redsistor used in electronic equipment

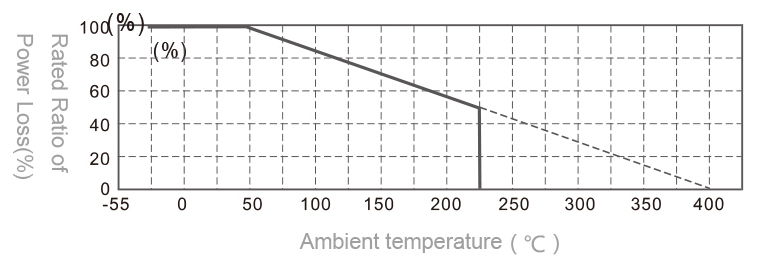

Wire Wound Resistor Rundown Curve

Ambient temperature 0-20℃ ＞20℃
Power loss 100% See figure
Wire-Wound-Resistor-Rundown-Curve

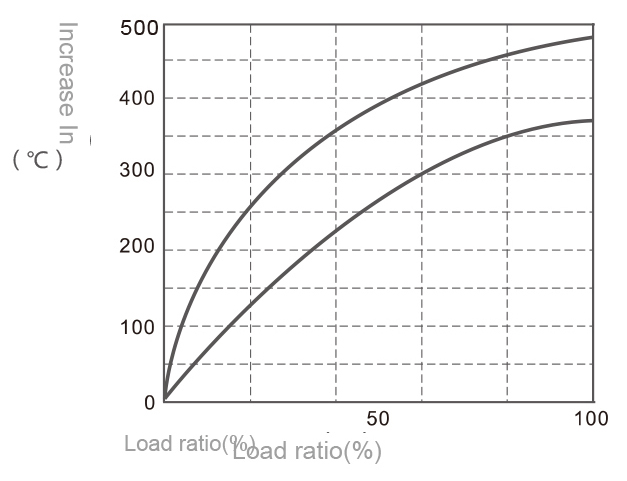

Wire Wound Resistor Surface Temperature Rise

Wire-Wound-Resistor-Surface-Temperature-Rise

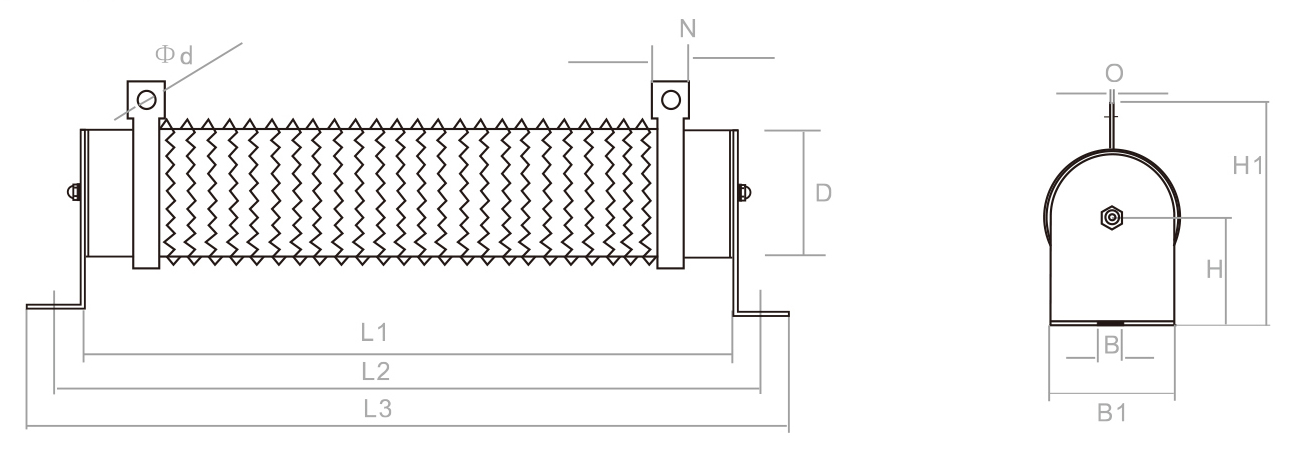

Wire Wound Resistor Size

Wire-Wound-Resistor-size
POWER (W) L1 (+2) L2 (+5) L3 (+3) D (+2) B B1 H1 (+3)
50 102 124 146 28 6.5 28 62
60 102 124 146 28 6.5 28 62
80 152 174 196 28 6.5 28 62
100 182 204 226 28 6.5 28 62
120 182 204 226 28 6.5 28 62
150 195 217 239 40 8 40 87
200 195 217 239 40 8 40 87
300 282 304 326 40 8 40 87
400 282 304 326 40 8 40 87
500 316 338 360 50 8 50 99
800 316 338 360 60 8 50 99
1000 300 325 350 60 8.5 60 119
1200 300 325 350 60 8.5 60 119
1500 415 440 465 60 8.5 60 119
2000 510 535 560 60 8.5 60 119
2500 600 635 650 60 8.5 60 119
3000 600 635 660 68 8.5 68 130
4000 600 635 660 68 8.5 68 130
5000 500 535 560 100 8.5 100 160
6000 600 635 660 100 8.5 100 160
line     HOW TO CHOOSE   line

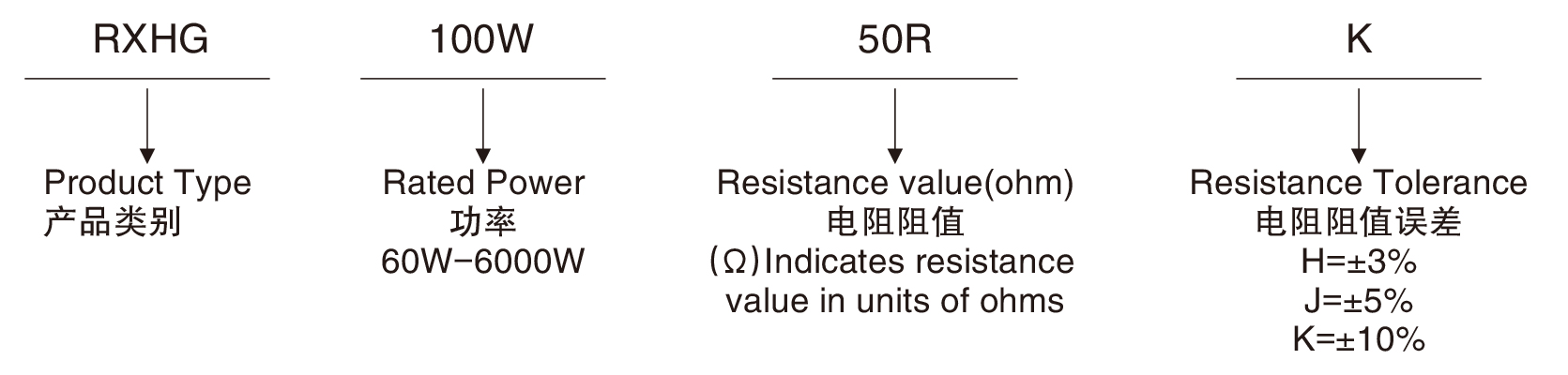

Wire Wound Resistor Selection Guide

Wire-Wound-Resistor-selection
