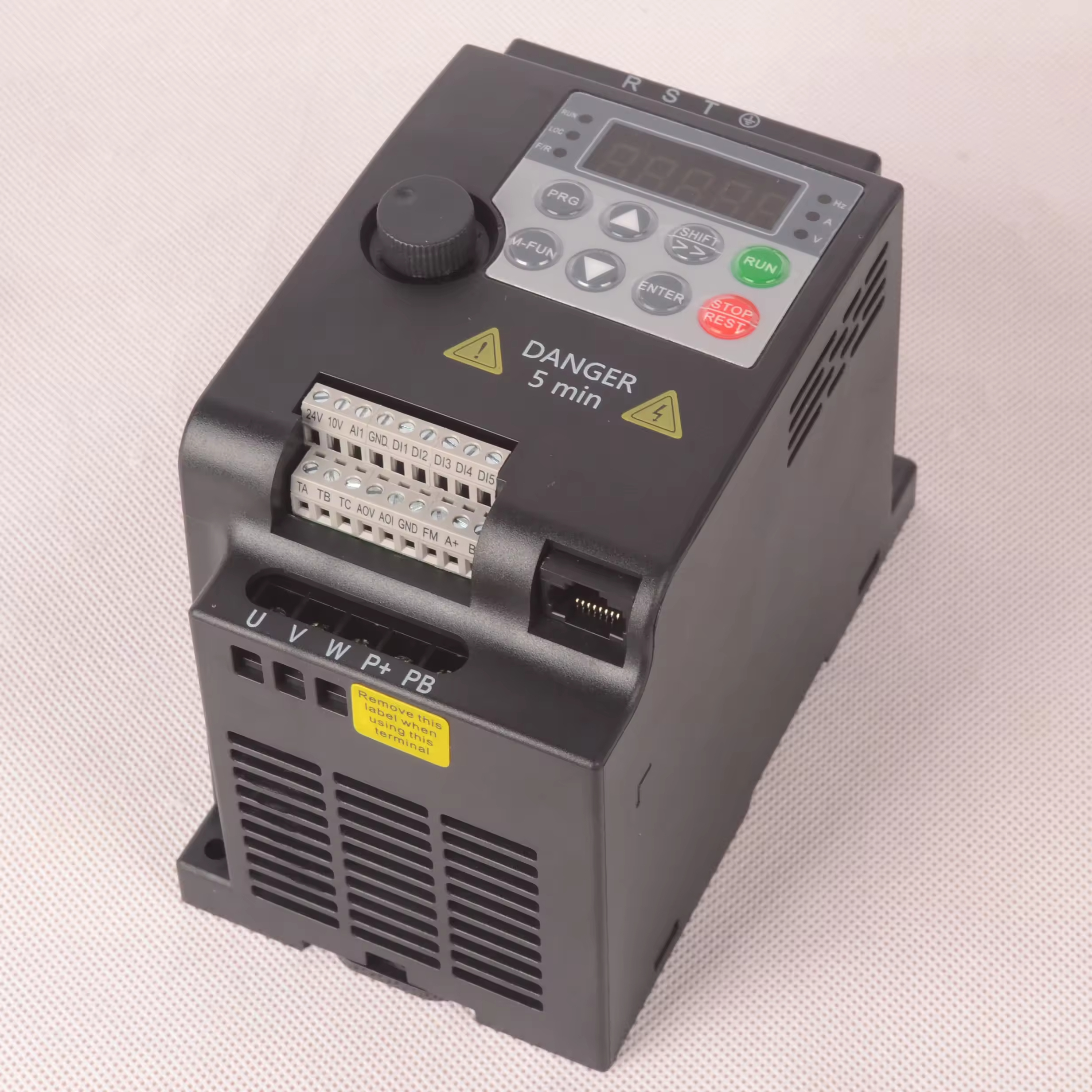

Variable frequency drives (VFDs) are likely familiar to many electrical professionals. Compared to traditional electrical circuit controls, VFDs have a higher level of technological sophistication, combining strong and weak electrical components. Therefore, they can experience a variety of faults, requiring continuous experiential learning combined with theoretical knowledge. Below are listed 15 common issues related to VFDs (definitions of VFD terminology and some frequently occurring faults). Do you understand all of these?
For digital control variable frequency drives (VFDs), even if the frequency command is an analog signal, the output frequency is given in steps. The smallest unit of this step difference is called frequency resolution. The frequency resolution typically ranges from 0.015 to 0.5 Hz. For example, with a resolution of 0.5 Hz, frequencies above 23 Hz can be set to 23.5, 24.0 Hz, and so on, causing the motor's action to follow in steps. This can pose problems for applications like continuous winding control. In such cases, a resolution of around 0.015 Hz can be sufficient, where for a 4-pole motor, one step corresponds to less than 1 rpm. Additionally, in some models, the given resolution may differ from the output resolution.
Models with separately adjustable acceleration and deceleration times are suitable for situations requiring short acceleration times and slow deceleration, or where strict production cycle times need to be defined for small machine tools. However, for applications such as fan drives where both acceleration and deceleration times are longer, it is appropriate to specify acceleration and deceleration times together.
Regenerative braking refers to the operation of an electric motor when the command frequency is reduced during operation. In this state, the electric motor operates as an asynchronous generator, acting as a brake.
The energy regenerated from the motor is stored in the filtering capacitors of the variable frequency drive. Due to the relationship between the capacity and voltage endurance of the capacitors, the regenerative braking force of standard variable frequency drives is typically about 10% to 20% of the rated torque. However, by using selected braking units, it is possible to achieve 50% to 100% of the braking force.
Protection functions can be divided into two categories:
When a clutch is used to connect the load, a sudden change occurs in the motor's operating state from unloaded to a region with a large difference in slip rate, causing a large current to flow, leading to Overcurrent tripping of the variable frequency drive, preventing it from operating.
When a motor starts, a starting current corresponding to its capacity flows, causing a voltage drop across the motor's stator, which is significant for large-capacity motors. Variable frequency drives connected to the same transformer may interpret this as under-voltage or momentary stoppage, leading to the activation of protection functions (IPE), resulting in the drive stopping.
If the set acceleration time is too short, the output frequency of the variable frequency drive changes far more rapidly than the speed (electrical angular frequency), causing the drive to trip due to Overcurrent, stopping its operation. To prevent under-speed and keep the motor running, the current magnitude is detected for frequency control. When the acceleration current is too high, the acceleration rate is appropriately slowed down. The same applies during deceleration. The combination of these two is the under-speed prevention function.

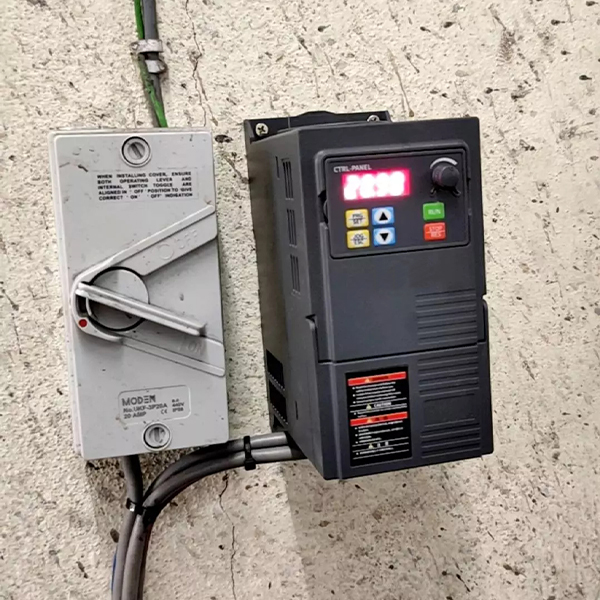

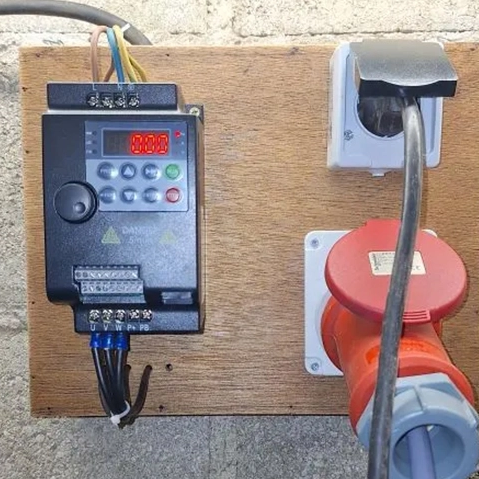

The internal and back structures of the variable frequency drive are designed with cooling in mind, and the orientation is important for ventilation. Therefore, for standalone units installed in cabinets or wall-mounted units, they should be installed vertically as much as possible.
Over-voltage alarms typically occur during shutdown, mainly due to too short deceleration times or problems with braking resistors and braking units.
In addition to Over-voltage, variable frequency drives also have high-temperature faults. If a high-temperature alarm occurs and the temperature sensor is found to be normal upon inspection, it may be caused by interference. In such cases, the fault can be masked, and the fan and ventilation of the variable frequency drive should also be checked. For other types of faults, it is best to contact the manufacturer for a quick and feasible solution.
Occurrences of Overcurrent in variable frequency drives:
It is possible at very low frequencies, but if the given frequency is high, it is similar to starting with mains frequency power. Starting the motor with a large starting current (6~7 times the rated current) will cause the variable frequency drive to cut off the Overcurrent, preventing the motor from starting.
When operating above 60Hz, the following points should be noted:
The lubricant in the variable frequency drive fan bearings may dry up, affecting its operation.
Long-term disuse of the high-voltage filtering capacitors can cause them to swell, while low-voltage electrolytic capacitors may develop leakage.
