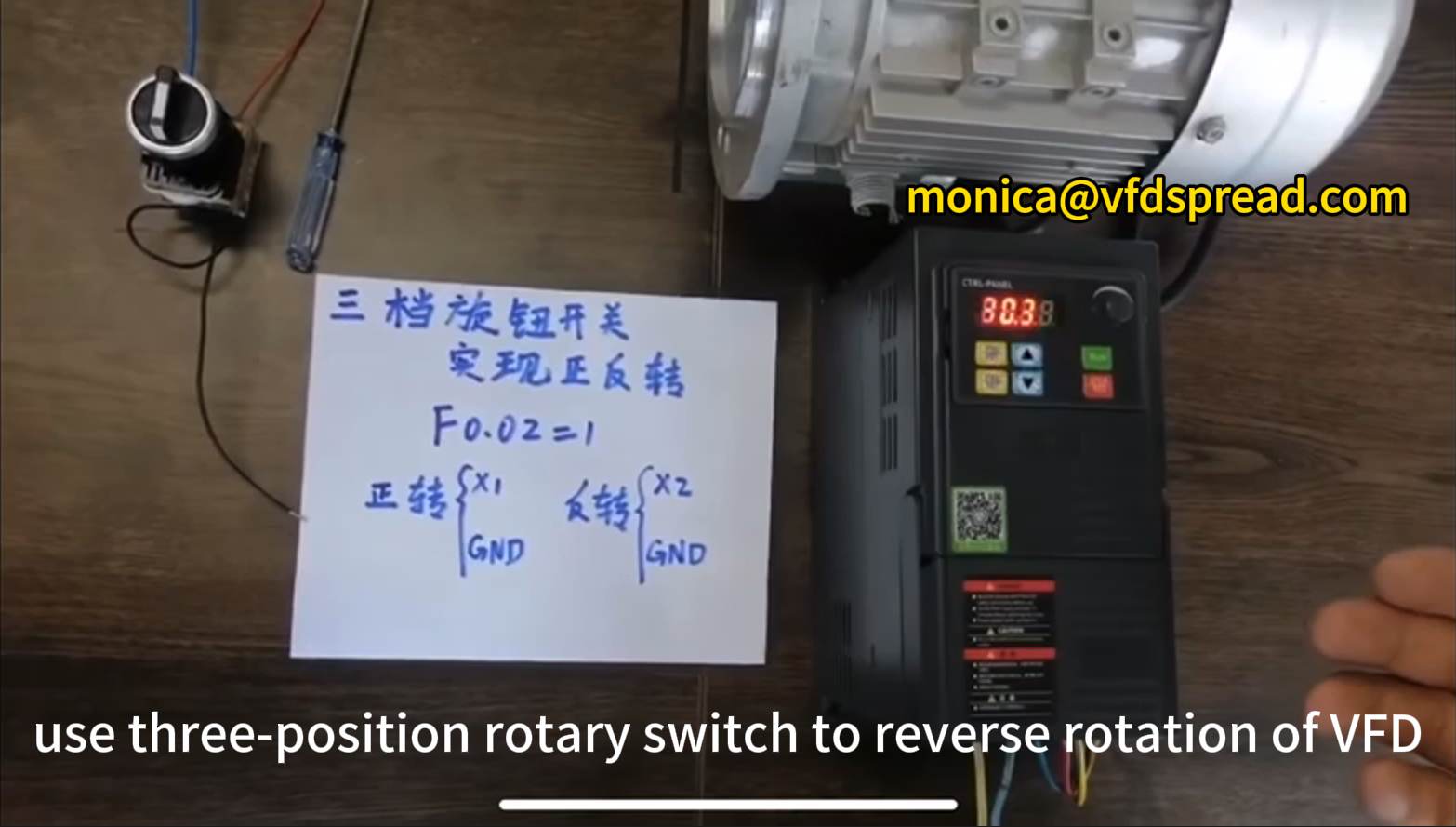

The process of using a three-position rotary switch to control the forward and reverse rotation of a frequency inverter.
Before diving into the steps, it's important to understand the basic concepts behind a frequency inverter and how it interacts with the motor and the control elements like the rotary switch.
A frequency inverter, also known as a variable frequency drive (VFD), is an electronic device that controls the speed and torque of an electric motor by varying the frequency and voltage of its power supply. This control allows for precise management of motor speed, which is crucial in various industrial applications. The inverter can also control the direction of the motor’s rotation, which is what we aim to achieve using a three-position rotary switch.
A three-position rotary switch is a type of switch that has three positions: typically labeled as Left, Center, and Right. In the context of motor control:
Left Position: Could be used to trigger forward rotation.
Center Position: Acts as the neutral or off position where the motor is stopped.
Right Position: Could be used to trigger reverse rotation.
By properly wiring this switch to the frequency inverter, you can easily switch between forward and reverse motor operations.
The first step involves setting the parameters in the frequency inverter to enable control via external switches (like your rotary switch).
Accessing the Parameter Menu:
Press the "PRG" button on the inverter to enter the parameter adjustment mode. This button allows you to configure the inverter’s settings to suit your specific application.
The display should show "D0," which indicates the default parameter menu.
Navigating to the Correct Parameter:
Use the up arrow key to scroll through the available parameters until you reach "F0."
"F0" typically represents basic setup parameters in many inverters, which might include control modes and start/stop logic.
Confirming Your Selection:
Press the "PRG" button again to confirm that you want to adjust the parameters under the "F0" category.
Once confirmed, use the up key to navigate to "F0.02." This specific parameter is often related to the control mode or input function of the inverter.
Adjusting the Parameter:
The display will initially show "0," which might represent the default control mode.
Press the up key to change this value to "1." Changing this value might switch the control mode to external inputs, allowing the inverter to accept commands from your rotary switch.
Finalizing the Adjustment:
Press the "PRG" button one last time to confirm your changes.
The adjustment is complete, and the inverter is now set to accept control signals from the external switch.
Exit the parameter adjustment mode by pressing the "JOG" button twice, which should return the inverter to its main operational screen.
Now that the inverter is configured to accept external control, the next step is to wire the rotary switch properly.
Understanding the Rotary Switch:
The three-position rotary switch has terminals on each side. These terminals are used to create the circuit that tells the inverter to either run the motor forward, stop it, or run it in reverse.
When the switch is in the center position, no circuit is completed, so the motor is off.
Shorting the Terminals:
Rotate the switch so that the middle knob is in the center position. Identify the two terminals directly opposite each other and short them together with a wire. This shorting ensures that when the switch is turned left or right, the correct circuit is completed for forward or reverse operation.
The shorted terminals will be connected to the "GND" on the inverter, which is the ground reference for the control circuit.
Connecting to Control Inputs:
The other two terminals on the rotary switch are used to send control signals to the inverter. Connect one of these terminals to "X1" on the inverter, which could be the input for forward rotation.
The second terminal should be connected to "X2," which could be the input for reverse rotation.
These connections enable the inverter to receive a signal from the switch, interpreting it as a command to start the motor in either direction.
Completing the Wiring:
Double-check all connections to ensure they are secure and correct. Loose connections can cause erratic operation or even damage to the inverter.
Proper wiring ensures that the signals are correctly interpreted by the inverter, allowing for smooth operation.
After completing the wiring, it’s crucial to test the setup to ensure everything functions as intended.
Testing Forward Rotation:
Turn the rotary switch to the left. The motor should start rotating in the forward direction. This indicates that the inverter has received the signal from "X1" and is controlling the motor accordingly.
Stopping the Motor:
Return the switch to the center position. The motor should stop immediately, as this position breaks the circuit, sending no signal to the inverter.
Testing Reverse Rotation:
Turn the rotary switch to the right. The motor should now start rotating in the reverse direction. This shows that the inverter correctly received the signal from "X2" and reversed the motor’s direction.
Final Verification:
Run the motor for a few minutes in both directions to ensure that there are no issues such as overheating, excessive vibration, or noise.
If the motor operates smoothly in both directions without any problems, the setup is complete and successful.
Power Off Before Wiring: Always ensure that the power to the inverter is completely off before beginning any wiring work. Working with live electrical components can be extremely dangerous.
Use Proper Tools: Use insulated tools to avoid accidental short circuits, and double-check all connections before powering on the system.
Follow Manufacturer Guidelines: Always refer to the inverter’s manual for specific instructions and parameters that might differ depending on the model.
Motor Doesn’t Start: If the motor doesn’t start when the switch is turned, double-check the wiring to ensure all connections are secure. Also, verify that the parameter adjustments were correctly applied.
Motor Runs in Only One Direction: If the motor only runs in one direction, it could indicate a problem with the connections to "X1" or "X2." Re-check the wiring to ensure both control signals are correctly connected.
Inverter Displays an Error: Some inverters might display an error if the setup is incorrect. Refer to the inverter’s manual to interpret any error codes and adjust the setup accordingly.
Using a three-position rotary switch to control the forward and reverse rotation of a frequency inverter is a practical and efficient way to manage motor operations. By carefully setting the correct parameters and ensuring proper wiring, you can easily switch between forward and reverse motor control, enhancing the functionality and versatility of your system.
This setup is particularly useful in industrial applications where precise control of motor direction is required. Whether you're operating conveyor belts, pumps, or other machinery, this method allows for straightforward, reliable motor management.
