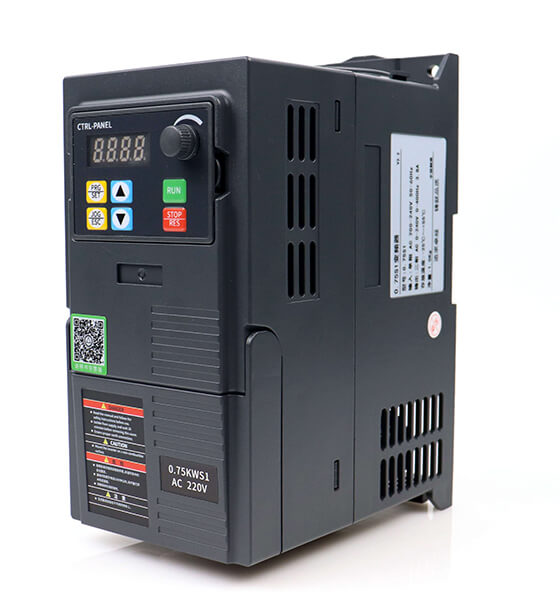

A variable frequency drive (VFD), sometimes referred to as an adjustable frequency drive(AFD) or an AC drive or a variable speed drive, is an electronic device used to control the speed and torque of an electric motor by varying the frequency and voltage supplied to it. In the world of electrical engineering and industrial automation, the Variable Frequency Drive (VFD) stands as a critical piece of equipment. It is an integral component in various industries and applications.
A variable frequency drive (VFD) typically consists of four parts: rectifier unit, high-capacity capacitor, inverter, and controller.
Converts fixed-frequency AC power into DC power.
Stores the converted electrical energy.
Composed of a high-power switching transistor array, it converts DC power into square waves with varying frequencies, widths, and amplitudes.
Operates according to a predefined program, controlling the amplitude and pulse width of the output square waves to generate approximately sinusoidal AC power to drive AC motors.

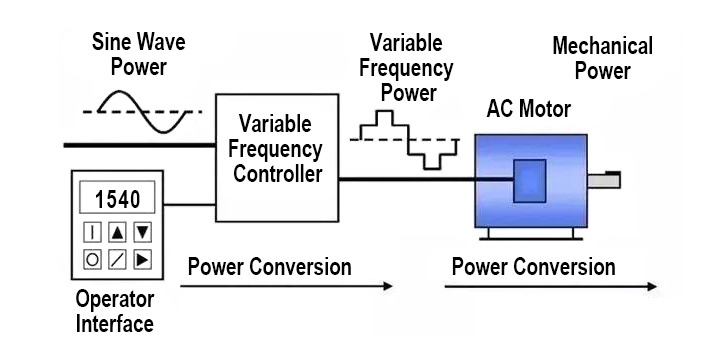

The working principle of a VFD is to convert the voltage and frequency of an AC power source into adjustable AC power. By controlling the circuit, the output voltage and frequency can be adjusted, allowing for speed and control of the motor.
VFD inverters grant you the power to precisely control motor speed, resulting in significant energy savings. By adjusting the motor's speed based on load requirements, the drive can effortlessly match the motor's power output to the actual demand, effectively reducing energy consumption and enhancing efficiency.
With the aid of VFD inverters, you can bid farewell to the wear and tear typically caused by abrupt starts and stops. These remarkable devices provide a soft start and gradual acceleration, masterfully diminishing mechanical stress on the motor and other components. Consequently, the lifespan of your equipment will be significantly extended.
Prepare to be amazed by the precise control over motor speed and torque that VFD inverters offer. This unparalleled control allows for superior management of processes, ultimately resulting in improved product quality, reduced waste, and a noticeable boost in productivity.
Thanks to the gentle starts and gradual acceleration provided by VFD inverters, the stress placed on your equipment will be minimized. This results in a notable reduction in the frequency of maintenance and repair needs, leading to substantial cost savings over time.
VFD inverters act like protective shields against voltage fluctuations and surges, sparing your motors and other equipment from potential damage. They are also equipped with built-in diagnostic capabilities that promptly detect issues before they escalate into major problems, effectively preventing costly downtime.
Brace yourself for a remarkable reduction in noise levels thanks to the unmatched control over motor speed that VFD inverters provide. This is especially advantageous in settings where noise reduction is of utmost importance, such as residential or office buildings.
Get ready to experience newfound flexibility with VFD inverters. They grant you the ability to adjust motor speed and torque to meet your specific requirements. This unparalleled flexibility enables the optimization of various processes and allows you to use a single motor for multiple applications, effectively reducing the need for additional equipment.
Variable frequency drives (VFDs) are widely used in various industries.
●The air conditioning industry, especially commercial central air conditioning, benefits significantly from the energy savings achieved by using variable frequency technology. Sales teams often highlight this selling point to persuade customers to use VFD-driven air conditioning systems.
●In the transportation sector, including trains and subways, variable frequency technology is widely adopted. It is commonly used in locomotives, high-speed trains, and subway systems.
●High-rise buildings often require high-speed elevators, and variable frequency technology is utilized to drive the elevator motors for speed control.
●In solar power systems, the output electricity is typically DC. To integrate with the grid, it needs to be converted into AC. This conversion process also relies on the basic principles of a variable frequency drive.
●In the case of electric vehicles, including electric bicycles, the motors are typically driven by DC power. Speed control is achieved by adjusting the duty cycle, thereby altering the voltage applied to the motor.
As technology continues to advance, more and more applications utilizing variable frequency technology will be developed.
The Variable Frequency Drive is a vital component in modern industrial automation, offering precise control over motor speed, energy efficiency, and improved process control. Its versatility and benefits make it an indispensable tool across numerous industries. As technology continues to advance, VFDs are expected to play an even more crucial role in optimizing motor performance and conserving energy resources.
